1. Blade type.
The new series plastic pulverizer mainly used in the field of hard PVC recycling, for example in the recycling of pipes and profiles to grind PVC waste, and the powder produced will be mixed with new PVC materials, and then used in the new extrusion production of pipe, profiles, boards.
The machine is mostly suitable for the PVC raw material with higher percentage of CACO3 as filler.
Machine Technical Parameter
Model | Main motor speed(r/min) | Main Motor power (KW) | Production capacity(kg/h) | Remark |
SMP-500 | 1~2950 | 37 | 80~280 | PVC 20-80 mesh |
SMP-600 | 1~2950 | 55 | 150~400 | PVC 20-80 mesh |
SMP-800 | 1~2950 | 75 | 300~880 | PVC 20-80 mesh |
Note: The output is affected by material properties, feed size, powder size,etc.

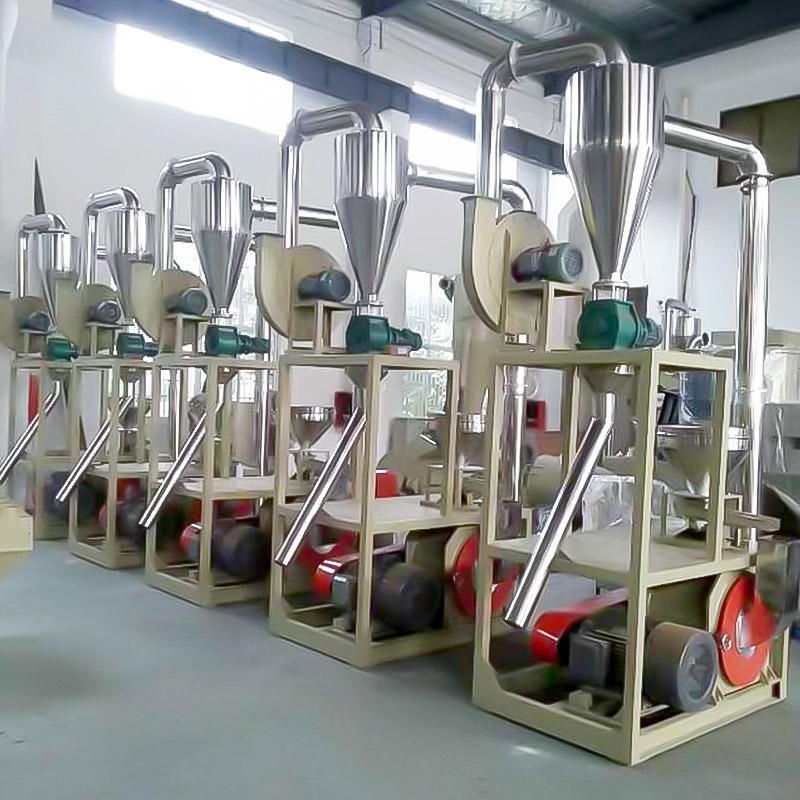

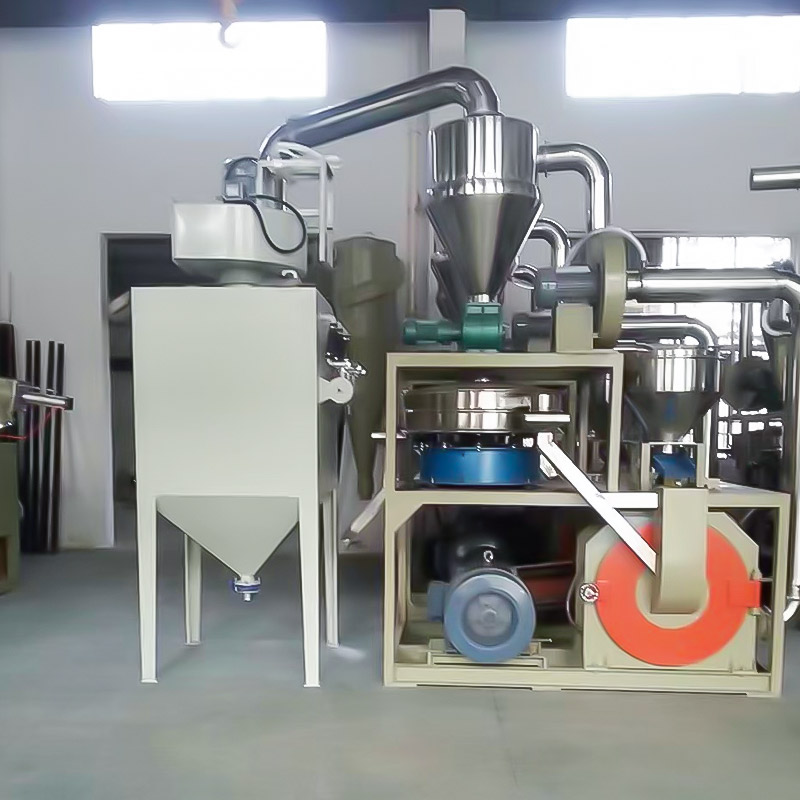

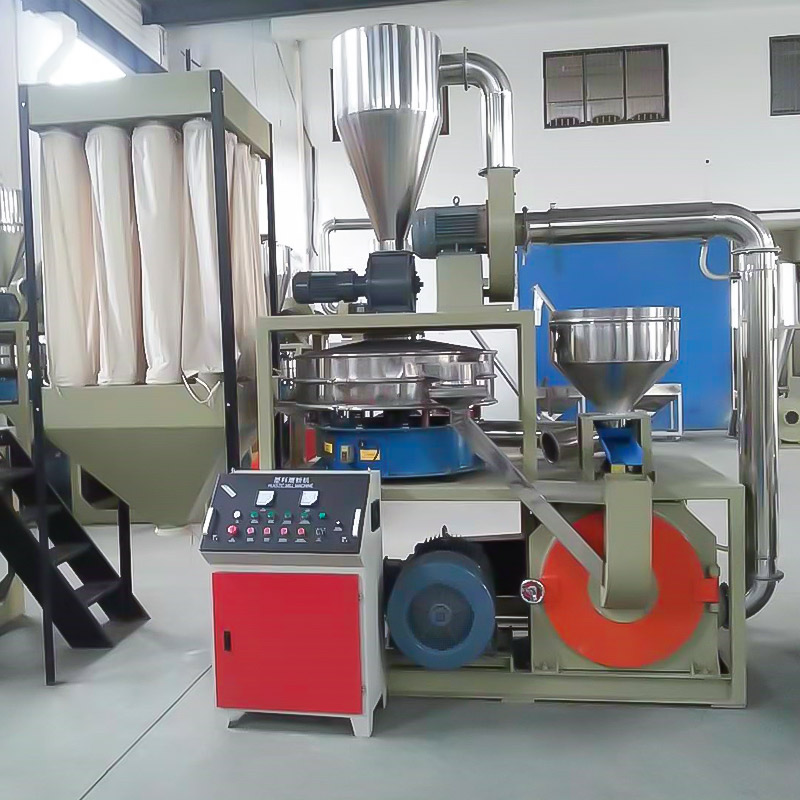

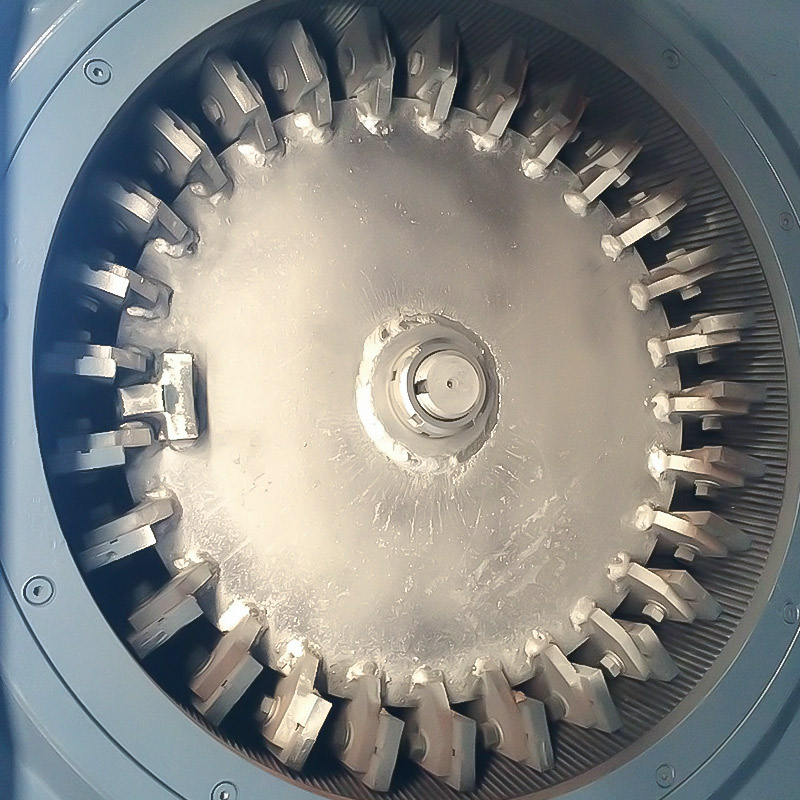

2. Disk type.
MF series grinder/miller/pulverizer can grind various theremoplastic material economically and efficiently at normal temperature. It can produce high-quality powder(free-flowing powder with high bulk density) for rotational molding applications. Such as the material of PE, PVC, PP, ABS, PA, EVA, PET, PS, EPS, PC, Foam, cowhide, etc.
Our MF series grinder/miller/pulverizer mainly used for grinding PE in the rotational molding industry. In this process, a virating screen must be used to ensure that the powder with uniform fineness is screened.
It is mainly used for PE, PP, PET, ABS pellets/flake, etc. and also for PVC pellets with lower percentage (within 50%) of CACO3 as filler.
Machine Technical Parameter
Model | Blade diameter | Main Motor power (KW) | Production capacity(kg/h) | Remark |
MF500 | Φ500 | 37 | 100~200 | The output is affected by material properties, feed size, powder size, etc. |
MF600 | Φ600 | 55 | 200~300 | |
MF800 | Φ800 | 75 | 300~650 |
Advantages

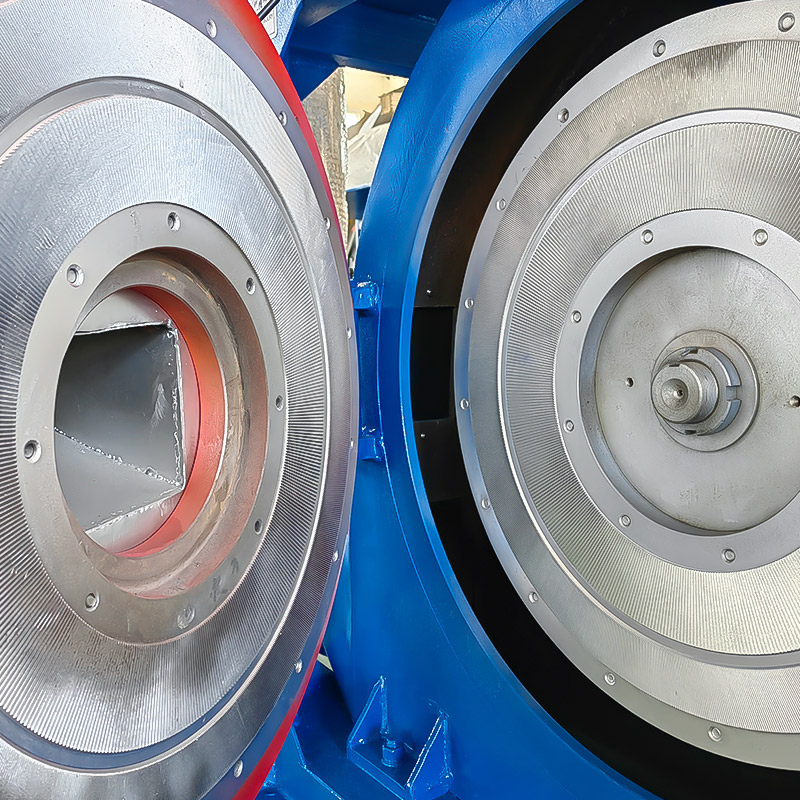

Simple adjustment of grinding disc clearance.
Easy to do maintenance and control.
Automatic regrinding coarse powder.
water-wind dual cooling system.
Provide different types of grinding disc configurations.
Maximum powder size distribution control.
