Views: 0 Author: Site Editor Publish Time: 2026-06-23 Origin: Site
A plastic pipe threading project rarely starts with the machine itself. It usually starts with a pipe drawing, a pipe sample, a required thread form, and a question from production: how can we cut repeatable threads on PVC, PE, PPR, or similar plastic pipe without slowing down the line? A CNC plastic pipe threading machine is built for this exact job. It cuts or forms threads on pipe ends so the pipe can connect with fittings, couplings, caps, adapters, or other threaded parts in a controlled and repeatable way.
For DEMASUN, the correct model is not chosen by a single catalog name. Pipe diameter, wall thickness, pipe length, material hardness, internal or external thread requirement, thread depth, and workshop layout all influence the final equipment design. A short pipe can often be handled by a compact machine. A long pipe may require a longer machine frame, stronger support, better centering, and a feeding system that keeps the pipe stable during cutting.
This guide explains how buyers can evaluate a CNC Plastic pipe threadng machine in a practical way. The wording may look simple, but the decision is technical: the machine must match the pipe, the thread, the operator workflow, and the target output.
Plastic pipe behaves differently from metal pipe. PVC is rigid and can chip if the tool is too aggressive. PE is tougher and more flexible, so the pipe may deform if clamping pressure is not controlled. PPR is commonly used in water pipe applications and needs a clean thread surface without crushing or melting at the end. A universal manual tool may work for small repair jobs, but industrial pipe manufacturing needs stable clamping, accurate positioning, controlled spindle speed, and repeatable tool feed.

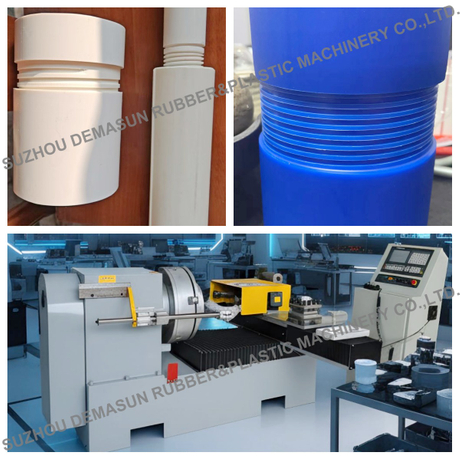

DEMASUN lists its Plastic Pipe Threader Machine as equipment for precision threading of PE and PVC pipe ports. The product information also mentions that the machine can cut threads onto pipe ends for plastic electrical, gas, and water pipe applications, and that configuration can be CNC, PLC, or semi-automatic depending on the project requirement.
A dedicated threader also keeps the production process more predictable. Instead of relying on operator experience alone, the machine can use programmed movement, fixtures, cutters, and stops to keep each pipe end consistent. This is especially important when the pipe will later be assembled with fittings that require stable thread engagement.
The first selection step is not motor power or automation level. It is the pipe specification. Buyers should prepare the basic pipe data before asking for a quotation. The most important items are outer diameter, inner diameter, wall thickness, pipe length, material type, required thread length, thread direction, and whether the thread is on the inside or outside of the pipe.
Pipe length is often overlooked, but it decides much of the machine structure. A short pipe can be positioned close to the cutting head with a simple support system. A long pipe may need extended roller support, a longer loading area, and a more rigid bed to prevent vibration. If the pipe bends during rotation or feeding, even a good cutter cannot produce a clean thread.
Thread type matters as well. Some projects need external threads for pipe-to-fitting connection. Others need internal threads inside the pipe end. Internal threading requires different tool access and chip removal planning. External threading focuses more on outside diameter control, tool angle, and pipe end support. A machine that is designed only for one method should not be assumed suitable for the other.
A semi-automatic pipe threading machine is suitable when production batches change often, pipe sizes vary, or the factory prefers an operator to load and unload each piece. In this mode, the machine can still use CNC control for movement and cutting, while the operator manages handling, confirmation, and inspection. Semi-automatic equipment is often easier to introduce into workshops with mixed orders.
A fully automatic pipe threading machine is better when the same pipe size runs in larger batches. Automatic feeding, positioning, clamping, cutting, thread processing, and unloading reduce manual work and stabilize cycle time. The investment is usually higher because the machine needs more handling mechanisms, more sensors, and a more complete safety layout.
Both approaches can use CNC control. The difference is not whether the machine is precise; the difference is how much of the work is handled automatically. For many buyers, the best solution is not the most automated machine, but the machine whose automation level matches the actual production rhythm.
A strong threader proposal should clearly state whether the machine handles internal threads, external threads, or both. Internal threads are useful when the pipe end must receive a male threaded connector. External threads are useful when the pipe itself becomes the male threaded component. In some projects, both ends of the pipe may need different operations, or one end may need cutting while the other end needs threading.
Tool access, spindle arrangement, fixture design, and chip control all change with the threading method. For internal threads, the tool moves into the pipe bore, so concentricity between the bore and cutting path becomes critical. For external threads, the pipe must be clamped without leaving marks that affect sealing or appearance.
This is why DEMASUN normally needs pipe samples or drawings before recommending a machine. A catalog picture cannot show every pipe condition. The right machine is designed around the pipe specification, not only around a machine model name.
Pipe length affects nearly every mechanical detail. A longer pipe can magnify small alignment errors. It can also create vibration during cutting if support points are not positioned correctly. When the pipe is very long, feeding and discharge space can become as important as the threading head itself.

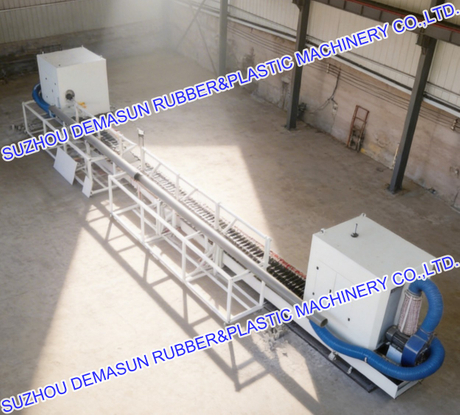

For short pipe sections, a compact machine may use a simple loading table, fixed clamp, and controlled cutting head. For medium lengths, the machine may need adjustable supports to keep the pipe centerline aligned. For long pipe applications, roller supports, automatic pushing devices, and end positioning systems may be required.
A useful rule is simple: do not select the machine only by pipe diameter. A 50 mm pipe that is 300 mm long and a 50 mm pipe that is 3 meters long are two very different handling problems. The cutting head may be similar, but the machine frame and feeding system may need a different design.

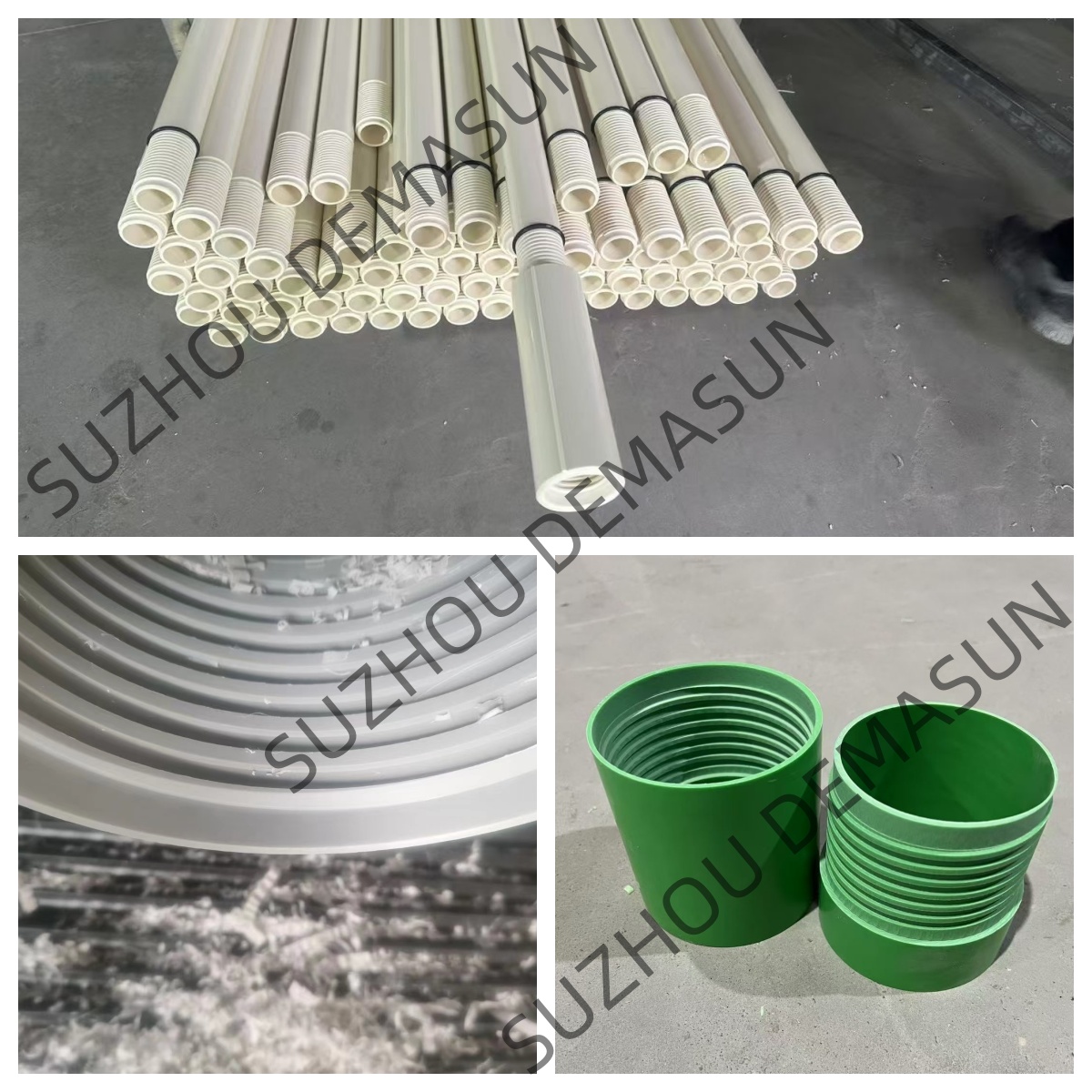

Check that the thread profile matches the required fitting or connector.
Confirm whether the machine can process PVC, PE, PPR, or the specific plastic grade used in production.
Evaluate pipe end burrs, melting marks, chips, and surface tearing after trial cutting.
Ask how the machine keeps the pipe centered during internal and external threading.
Review how quickly the operator can change fixtures for another pipe size.
Confirm whether the machine can be supplied as semi-automatic or fully automatic CNC control.
Plastic pipe production rarely uses only one machine. Threading may sit after cutting, grooving, bending, perforating, socketing, or extrusion, depending on the final product. DEMASUN’s auxiliary machinery range includes pipe socket machines, groove machines, perforator machines, threader machines, mixer units, crushers, shredders, and grinders. This matters because threading can be planned as part of a complete pipe finishing workflow rather than a standalone island.
For projects that also need slots or grooves, the Plastic Pipe Groove Machine may be considered as a related process. For special pipe shape handling, a Semi-automatic PVC Pipe Bender Machine can also be relevant in pipe finishing workshops. The key is to avoid choosing each machine separately without checking the full production route.
Before ordering, buyers should share the pipe material, pipe drawings, thread samples, expected daily output, workshop space, available power supply, and desired automation level. If the pipe has special requirements such as thin wall, high gloss surface, double-end threading, or strict fitting compatibility, those details should be discussed early.
A good plastic pipe threading machine is not only a cutter. It is a coordinated system of clamping, centering, feeding, CNC motion, tooling, chip control, guarding, and operator workflow. When these elements match the pipe, the result is faster production and fewer rejected pieces.
Choosing the right CNC pipe threading machine for plastic pipe cutting begins with understanding the pipe itself. PVC, PE, and PPR pipes have different behavior under clamping and cutting. Pipe length decides the machine size and support structure. Thread type decides tool access and fixture design. Automation level decides how the machine fits into daily production.
For buyers who need a practical solution, the best approach is to treat the machine as a project-specific system. DEMASUN can recommend semi-automatic or fully automatic CNC-controlled pipe threading equipment according to pipe size, material, thread requirement, and production layout. That is the safest way to turn a pipe drawing into stable threaded pipe output.
