16mm to 225mm
DEMASUN
H.S. CODE:

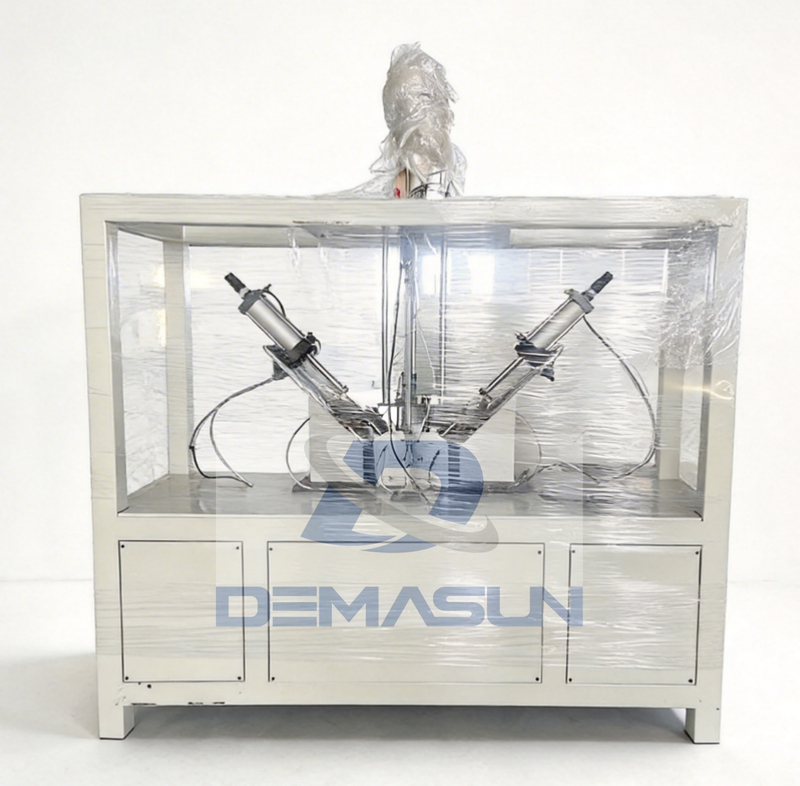

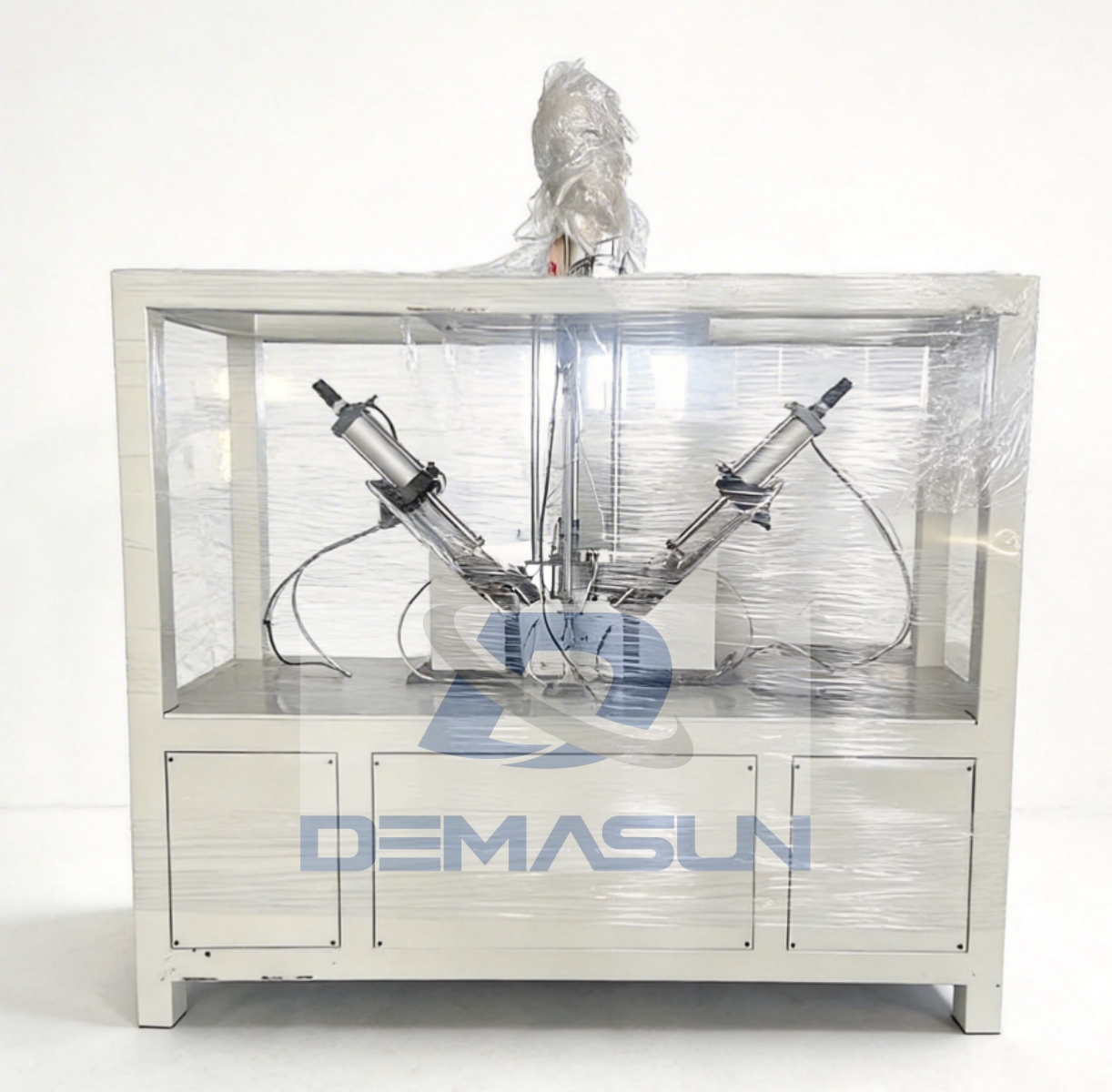

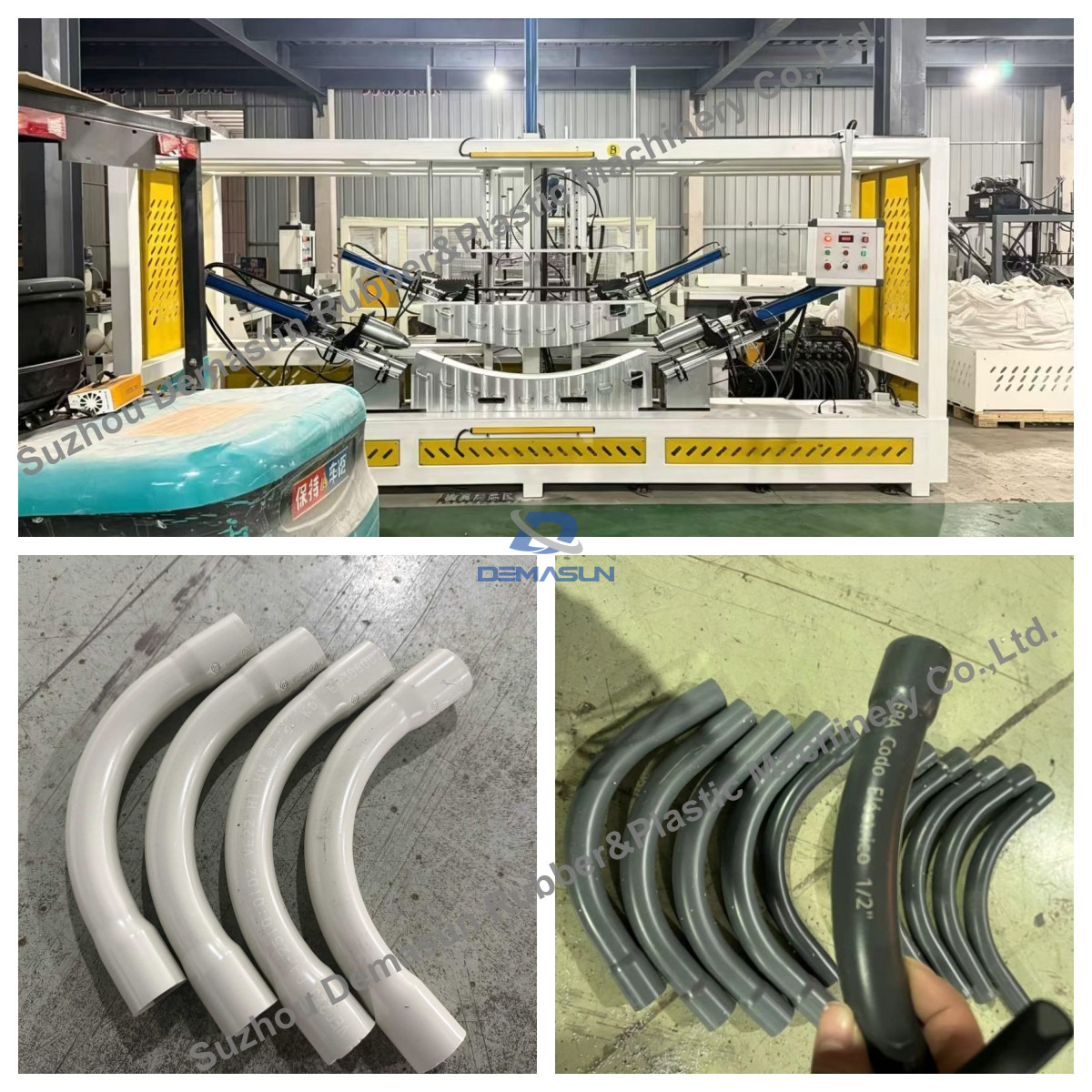

Semi-automatic Plastic Pipe Bending Machine，
It supports a wide pipe diameter range of 16mm to 225mm, with adjustable heating up to 300°C and 5-20KW power to match your production needs. Bending time ranges from 30 to 240 seconds per piece, depending on pipe size and wall thickness.
Product advantages,

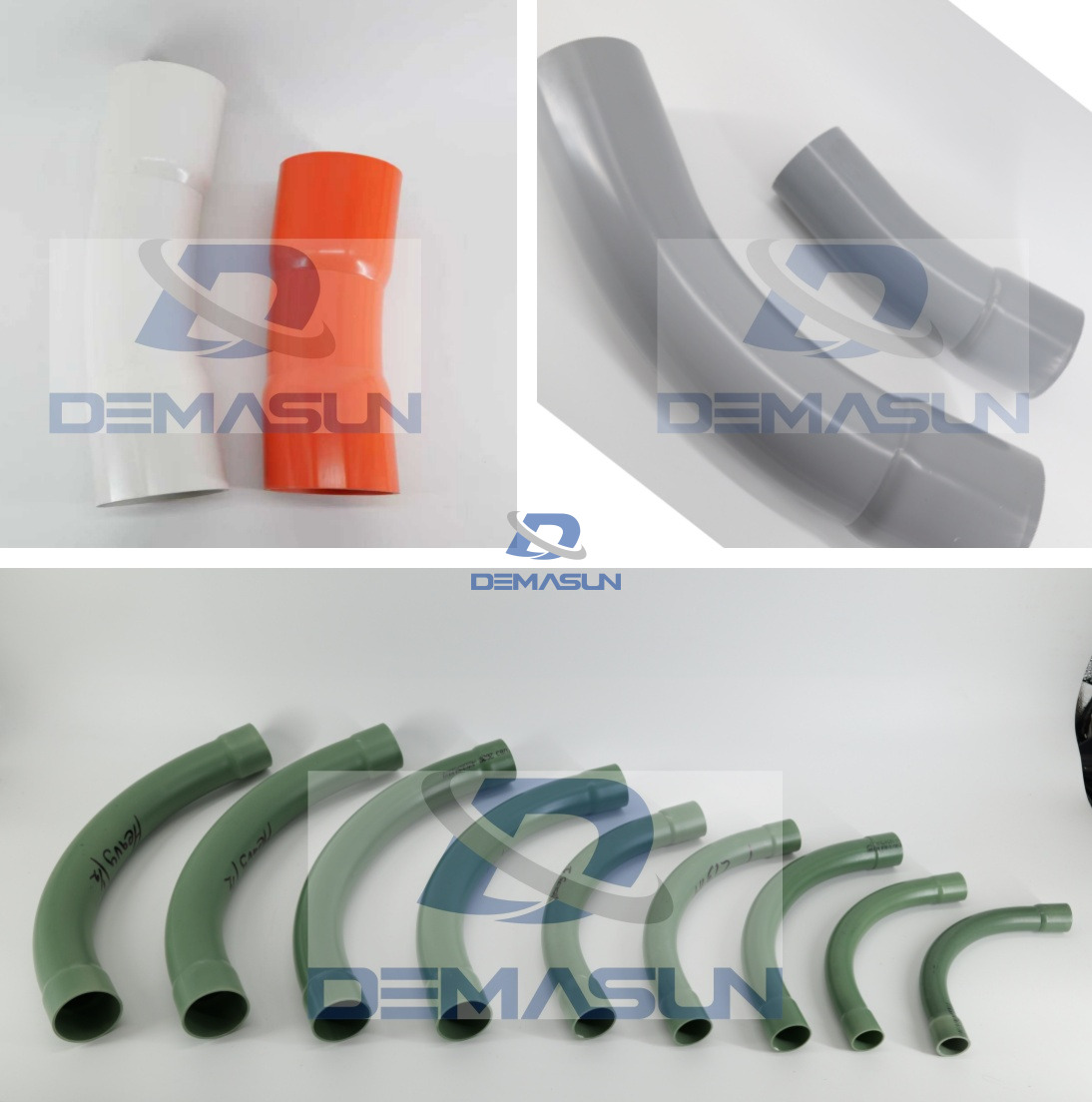

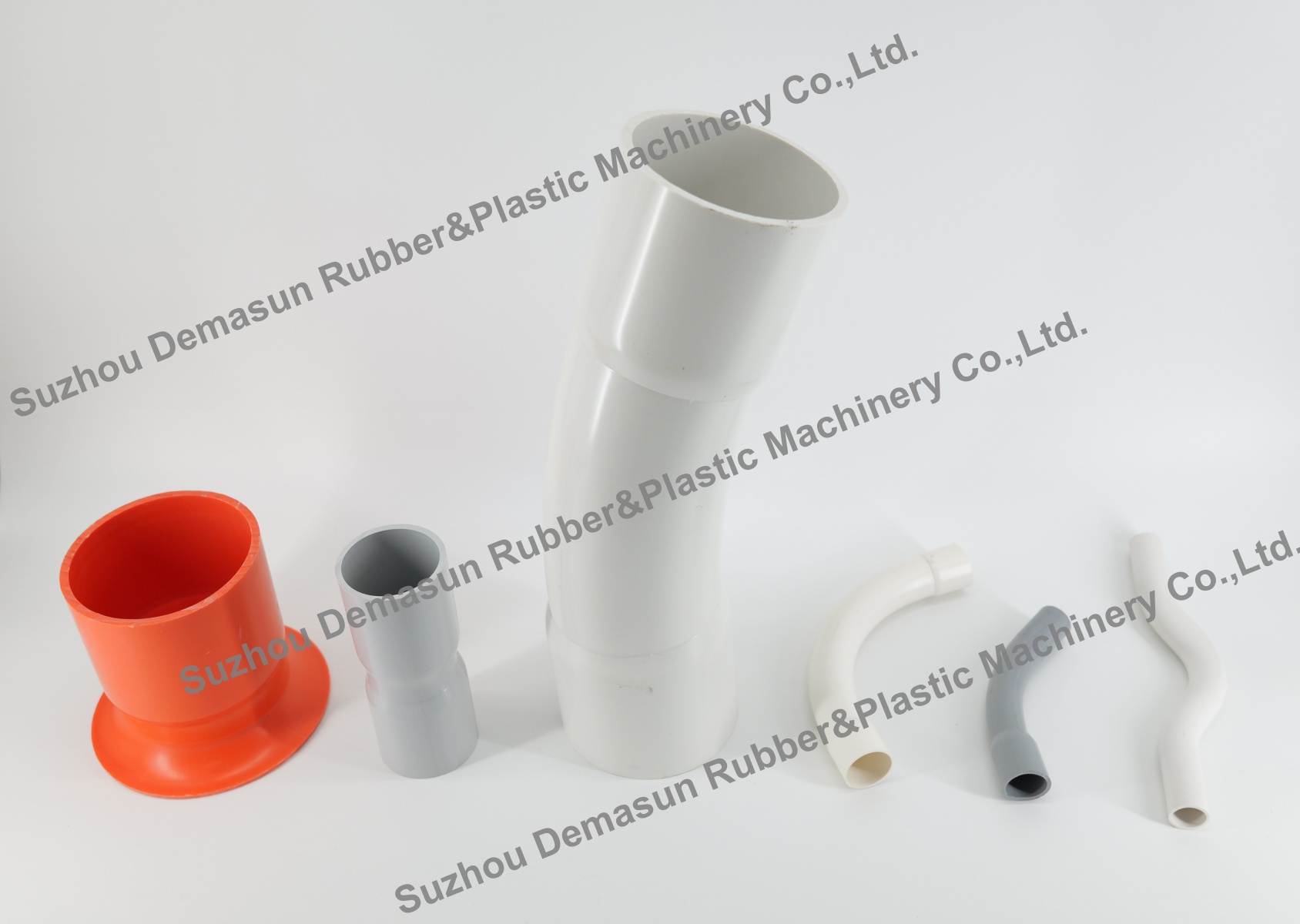

Wide Application: Electric conduits, PVC elbows, pneumatic logistics pipes
Diameter Range: 16mm – 225mm
Heating Temp: Up to 300°C
Power: Adjustable 5-20KW
Production Speed: 30-240 seconds/piece
Key Advantage: Saves ~50% cost vs. injection molding
Bending Quality: Perfect roundness, smooth inner walls, no wrinkling.
Customizable moulds allow for precise bending angles to meet various project requirements, including electric conduit pipes, PVC elbows, and pneumatic logistics systems. The machine ensures perfect roundness and smooth inner walls without wrinkling.
With user-friendly operation, low maintenance requirements, and reliable performance, it is the ideal solution for manufacturers seeking to improve efficiency and reduce costs in PVC pipe bending.
Pipe Diameter Range: | wide range from 16mm to 225mm, accommodating various project demands. |
Product Speed: | 30~240 seconds per piece to suit your production pace, vary with different pipe outer diameter and wall thickness. |
Bending Pipe Usage: | Ideal for applications such as electric conduit pipes, PVC elbows, and so on, delivering versatility and reliability. |
Power: | With an adjustable range of 5~20KW, adapts to your power needs for efficient operation. |
Maximum Heating Temperature: | Capable of reaching up to 300ºC, facilitating swift and effective bending. |
Bending Angle: | Utilizes customizable moulds to address a variety of bending requirements with precision. |
