Views: 0 Author: Site Editor Publish Time: 2026-05-15 Origin: Site
A PVC pipe bending machine is used to heat, soften, bend, and shape plastic pipes into fixed angles or special pipe forms. It is mainly used for products such as PVC elbows, electric conduit pipes, PVC bell ends, PVC double-ended expanded joints, and pneumatic logistics tubes.
For manufacturers, this machine helps make plastic pipe bending more stable and repeatable. Instead of relying only on manual heating and hand forming, a PVC pipe bending machine controls key steps such as pipe positioning, heating, mold forming, bending angle, and cooling.
Suzhou Demasun Rubber & Plastic Machinery Co., Ltd. provides both Semi-automatic PVC Pipe Bending Machine and Automatic PVC Pipe Bending Machine options. These machines can also be called PVC Pipe Bender Machine, Plastic Pipe Bending Machine, Semi-automatic Plastic Pipe Bending Machine, or Automatic Plastic Pipe Bending Machine.
A PVC pipe bending machine is plastic pipe processing equipment designed to bend straight PVC or plastic pipes into required angles. It works by heating the pipe until it becomes soft enough to form, then bending it through a customized mold.
The machine is commonly used for:
Electric conduit pipes
PVC elbows
PVC bell end connectors
PVC double-ended expanded joints
Pneumatic logistics tubes
Plastic pipe bending applications
According to the product information, PVC elbows can support bending angles such as 11.25°, 22.5°, 45°, 90°, and custom angles. The product information also shows compatibility with standards such as SCH40, SCH80, AS/NZS, and DIN.
A PVC pipe bending machine works through a controlled process. The basic steps include pipe positioning, heating, bending, cooling, and unloading.
First, the pipe is placed into the working area of the machine. The pipe position must be aligned with the heating and forming area. Accurate positioning helps the finished pipe maintain the required angle and shape.
For a Semi-automatic PVC Pipe Bending Machine, operators usually assist with pipe loading, positioning, and unloading. For an Automatic PVC Pipe Bending Machine, the working process is more automated and better suited for repeated production.
The selected pipe area is heated until the plastic becomes flexible enough for bending. Heating control is very important because the pipe must soften without burning, cracking, or deforming.
Based on the provided technical information:
Machine Type | Maximum Heating Temperature |
|---|---|
Semi-automatic Plastic Pipe Bending Machine | Up to 300℃ |
Fully Automatic Plastic Pipe Bender Machine | Up to 200℃ |
If the temperature is too low, the pipe may crack during bending. If the temperature is too high, the pipe surface may deform or lose strength.
After heating, the softened pipe is bent by a mold. The bending angle is customized by the mold, which means manufacturers can produce different pipe shapes according to product requirements.
Common PVC elbow angles include:
Bending Angle | Application Meaning |
|---|---|
11.25° | Slight direction adjustment |
22.5° | Moderate pipe turning |
45° | Common pipe routing angle |
90° | Right-angle pipe connection |
Custom angle | Special project or product requirement |
The mold helps control the bending radius and final shape. A suitable mold reduces pipe flattening, wrinkling, and uneven deformation.
After bending, the pipe must be cooled while remaining in position. Cooling allows the plastic material to regain rigidity and keep its final shape.
Once the pipe is cooled, it can be removed from the machine and checked for angle accuracy, surface quality, and dimensional consistency.

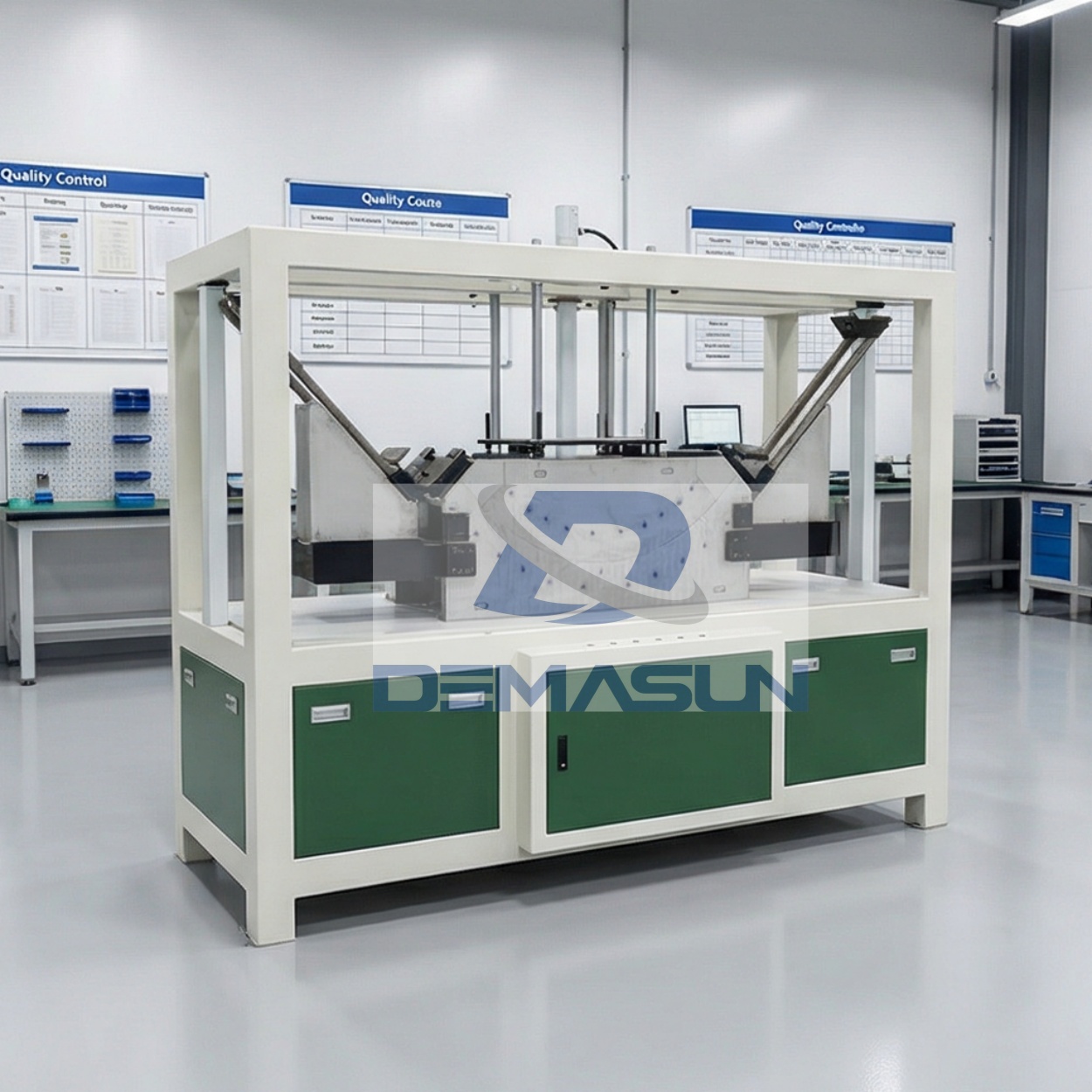

A Semi-automatic PVC Pipe Bending Machine is suitable for flexible production, small to medium batch orders, and factories that need more operator control.
It can also be called:
Semi-automatic PVC Pipe Bender Machine
Semi-automatic Plastic Pipe Bending Machine
Semi-automatic plastic pipe bender
Item | Specification |
|---|---|
Product Type | Semi-automatic Plastic Pipe Bending Machine |
Pipe Diameter Range | 16mm to 225mm |
Production Speed | 30–240 seconds per piece |
Usage | Plastic pipe bending |
Applications | Electric conduit pipes, PVC elbows |
Working Voltage | At request |
Power | 5–20KW |
Maximum Heating Temperature | Up to 300℃ |
Bending Angle | Customized by mold |
Mold Pressure | 30–100MPa |
The semi-automatic model is practical when manufacturers need to produce different pipe sizes or bending angles. It offers flexibility because molds and operating steps can be adjusted according to the product.

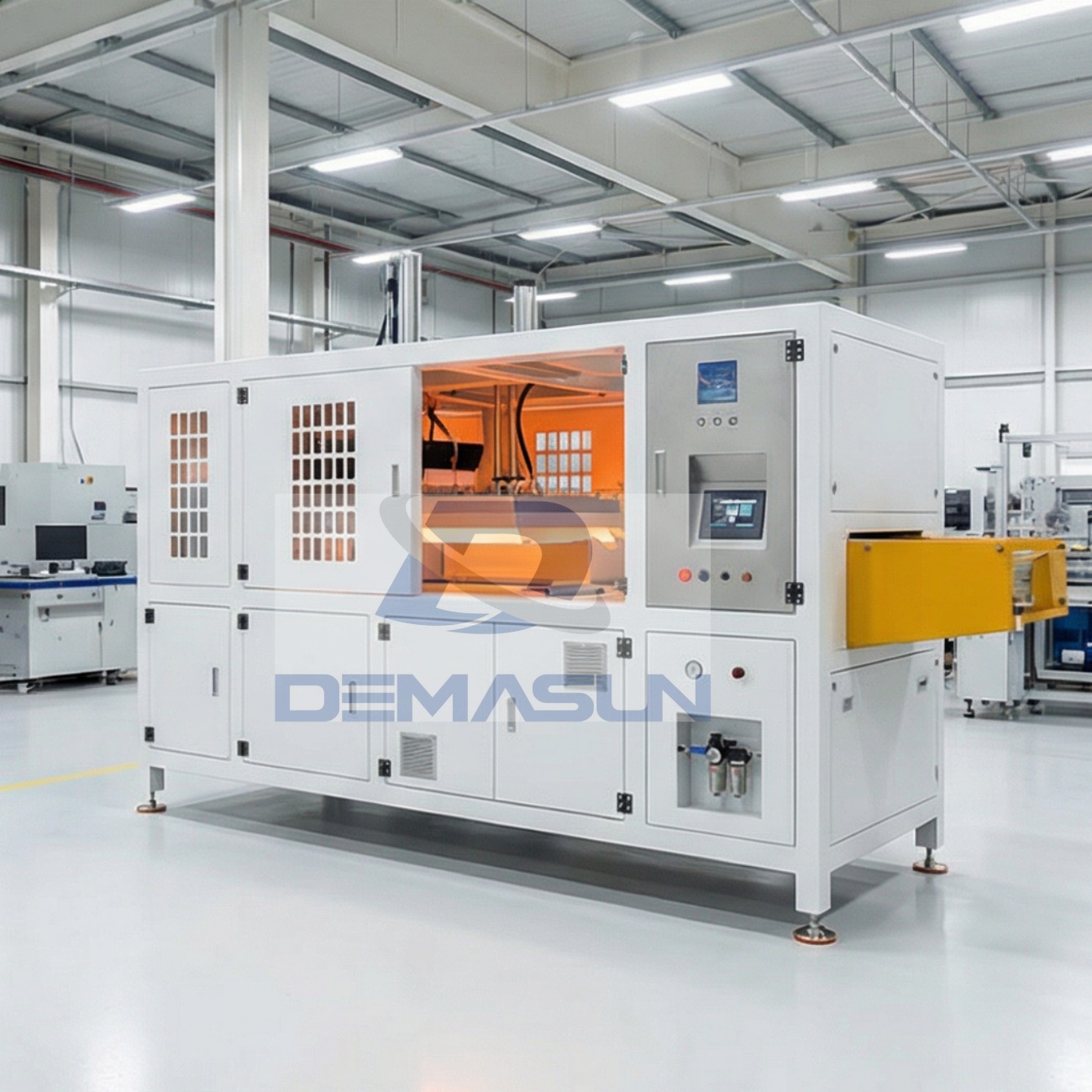

An Automatic PVC Pipe Bending Machine is designed for higher production stability and more continuous operation. It is suitable for factories that need repeated pipe bending with less manual handling.
It can also be called:
Automatic PVC Pipe Bender Machine
Automatic Plastic Pipe Bending Machine
Fully automatic pipe bending machine
Automatic plastic pipe bender
Item | Specification |
|---|---|
Product Type | Fully Automatic Plastic Pipe Bender Machine |
Pipe Diameter Range | 1/2"–2" to 2 1/2"–8" |
Production Speed | 80–240 seconds per piece |
Usage | Plastic pipe bending |
Applications | Electric conduit pipes, PVC pipe elbows, pneumatic logistics pipes |
Working Voltage | At request |
Maximum Heating Temperature | Up to 200℃ |
Bending Angle | Customized by mold |
The automatic model is more suitable for standardized production. It helps improve consistency when producing PVC elbows, conduit bends, and pneumatic logistics pipe products.
Feature | Semi-automatic PVC Pipe Bending Machine | Automatic PVC Pipe Bending Machine |
|---|---|---|
Operation Mode | Manual-assisted operation | More automated operation |
Suitable Production | Flexible batches and varied products | Repeated and more stable production |
Pipe Diameter Range | 16mm to 225mm | 1/2"–2" to 2 1/2"–8" |
Maximum Heating Temperature | Up to 300℃ | Up to 200℃ |
Applications | Electric conduit pipes, PVC elbows | Electric conduit pipes, PVC elbows, pneumatic logistics pipes |
Bending Angle | Customized by mold | Customized by mold |
Both machine types are useful. The right choice depends on pipe diameter, product type, production speed, automation requirement, and factory workflow.

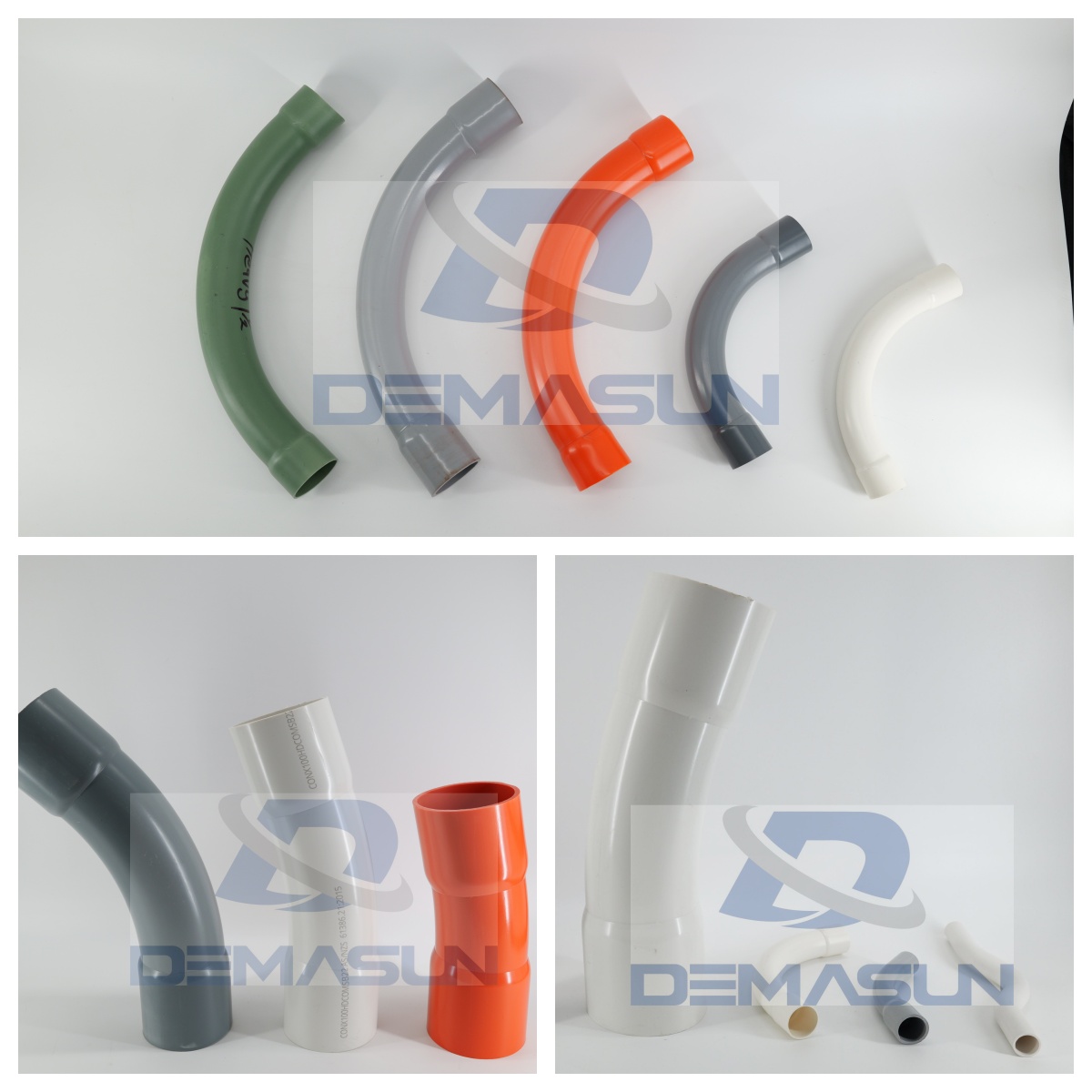

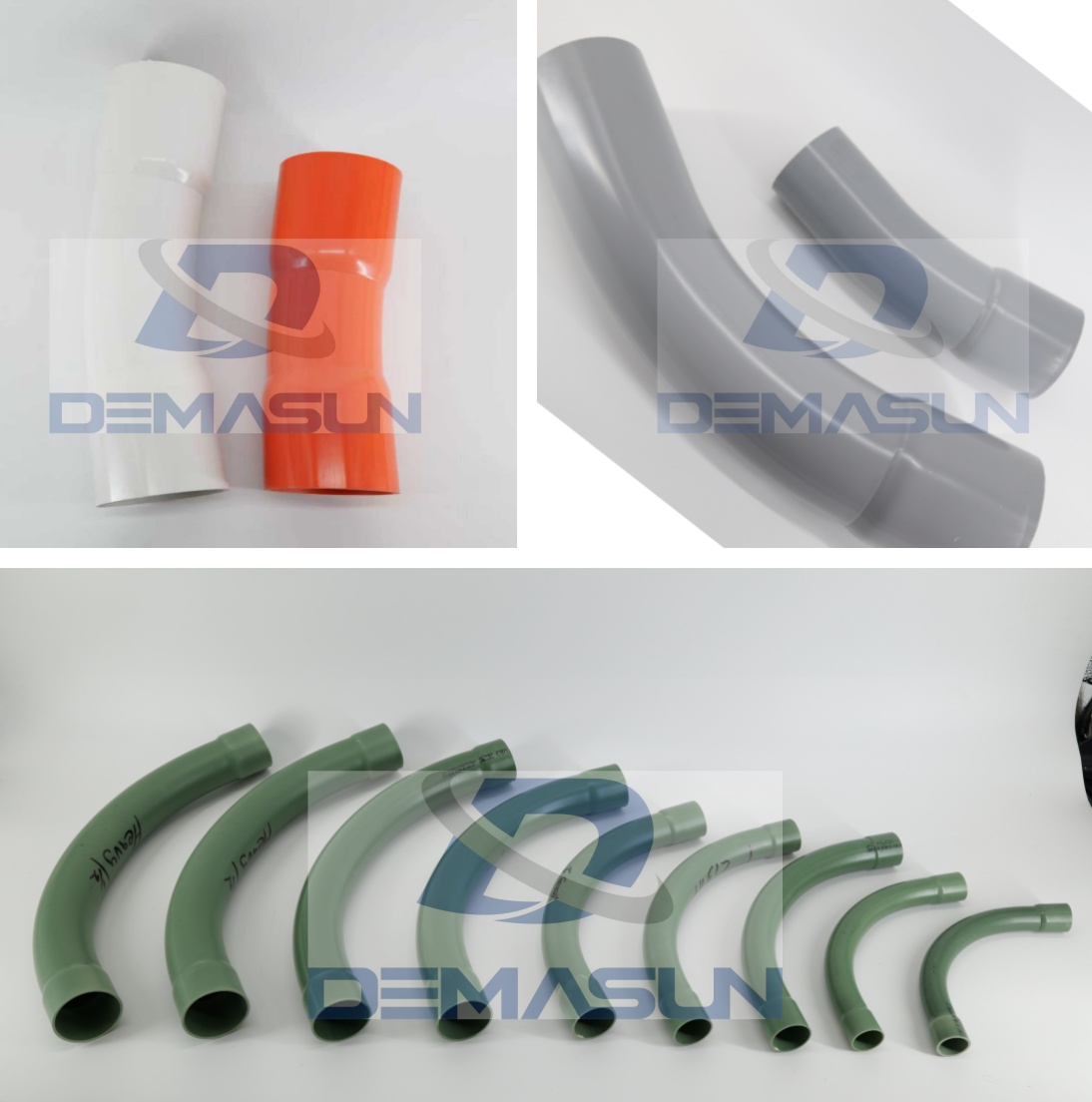

PVC elbows are used to change pipe direction and angle. They are widely used in plastic pipe connection systems where a fixed turning angle is required.
The provided product information shows that PVC elbows can support:
11.25°
22.5°
45°
90°
Custom angle
The product information also includes standards such as SCH40, SCH80, AS/NZS, and DIN.

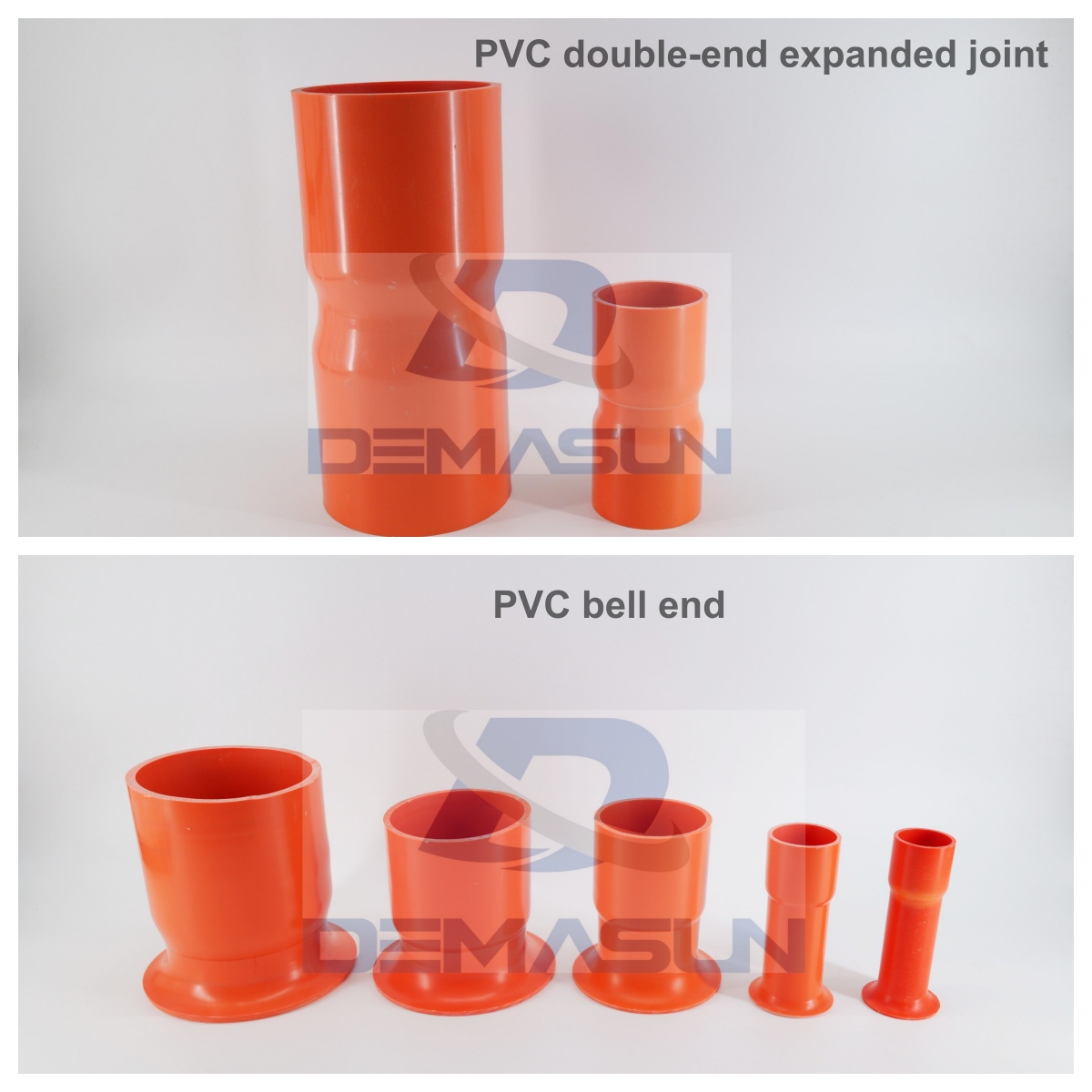

Product | 32mm | 40mm | 50mm | 63mm | 80mm | 100mm | 125mm | 150mm | 200mm |
|---|---|---|---|---|---|---|---|---|---|
PVC Double-ended Expanded Joint | √ | √ | √ | √ | √ | √ | √ | √ | √ |
PVC Bell End | √ | √ | √ | √ | √ | √ | √ | √ | × |

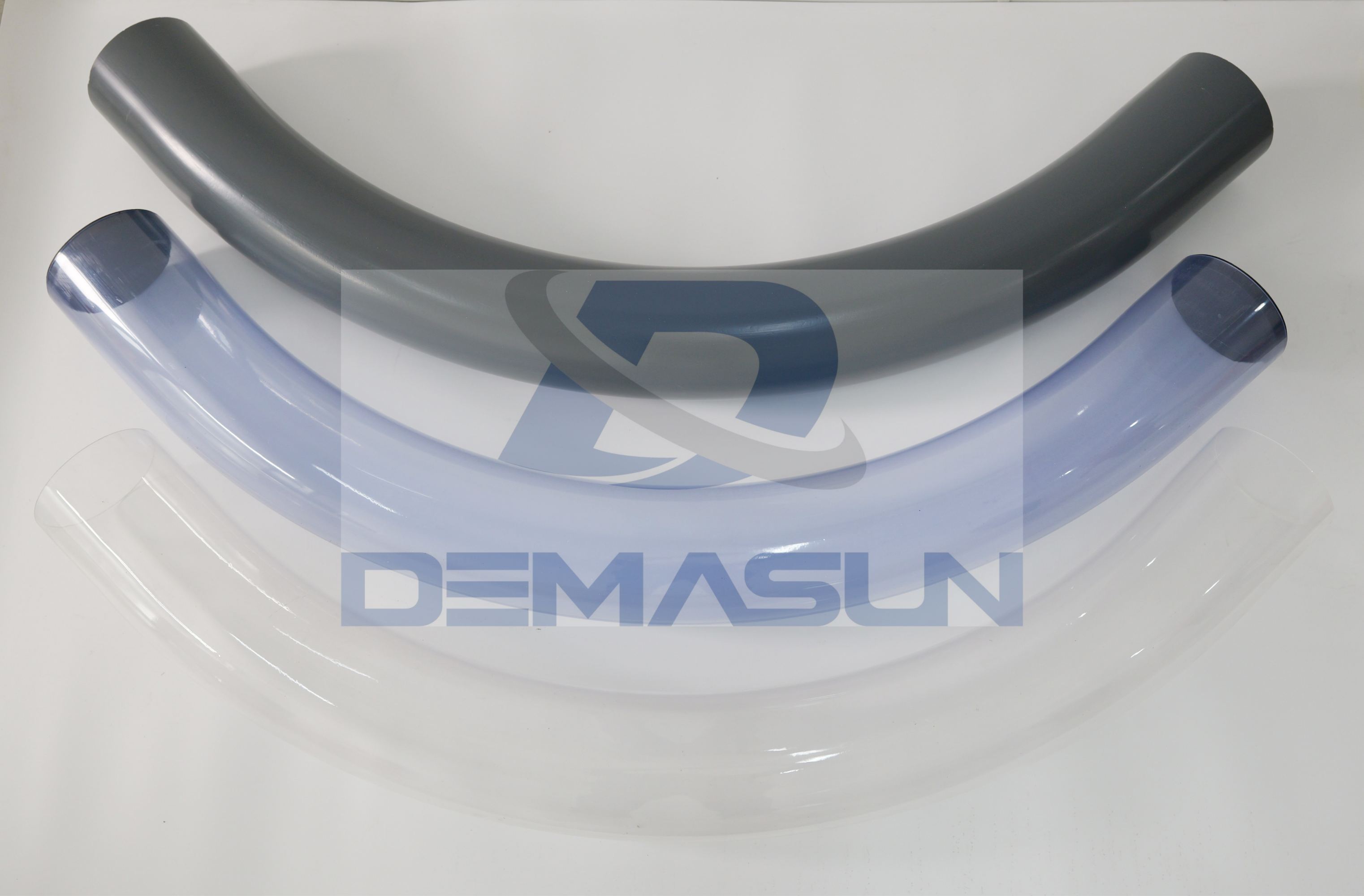

Pneumatic logistics tubes are used in pneumatic transport systems. The provided information lists application scenarios such as banks, hospitals, and logistics delivery systems.
The product data includes:
Item | Specification |
|---|---|
Material | PVC / Acrylic |
Size | OD110, OD160 |
Colors | Gray, blue-gray, transparent |
The provided product information also mentions features such as smooth inner wall, high throughput, strong durability, and anti-aging performance.
A PVC pipe bending machine helps control the heating process, bending angle, and mold forming. This makes the finished pipe bends more consistent than manual bending.
Machine bending reduces repeated manual work. For factories that need regular production of PVC elbows or conduit bends, this can improve workflow efficiency.
Because the bending angle is customized by mold, manufacturers can produce different bend angles based on product demand.
Proper heating and mold support help reduce common bending issues such as flattening, cracking, wrinkling, or uneven pipe shape.
By changing molds and process settings, the machine can support different plastic pipe products, including PVC elbows, bell ends, expanded joints, and pneumatic logistics tubes.
When choosing a PVC pipe bending machine, buyers should review several practical factors.
Selection Factor | Why It Matters |
|---|---|
Pipe Diameter Range | The machine must match the required pipe size. |
Product Type | Different products need different molds and process settings. |
Bending Angle | The required angle should be supported by mold design. |
Heating Temperature | Stable heating improves pipe forming quality. |
Automation Level | Semi-automatic and automatic models suit different production needs. |
Mold Customization | Mold design affects final pipe angle and shape. |
Supplier Support | Technical support helps with machine setup, mold adjustment, and production testing. |
Uneven heating can lead to unstable bending results. The pipe may bend poorly or show surface defects if one area is overheated while another remains too rigid.
Pipe flattening may occur when the bending radius is not suitable or when the pipe does not have enough support during bending.
Angle error can happen if the mold is not accurate, the pipe is not positioned correctly, or the cooling process is not stable.
If the pipe is overheated, the surface may become rough, discolored, or deformed.
If machine settings, molds, or heating time are not properly controlled, product consistency may be affected.
A: A PVC pipe bending machine is equipment used to heat and bend PVC or plastic pipes into required angles or shapes.
A: A semi-automatic machine needs more operator involvement, while an automatic machine provides a more automated process for repeated production.
A: It can be used for PVC elbows, electric conduit pipe bends, PVC bell ends, PVC double-ended expanded joints, and pneumatic logistics tubes.
A: According to the provided technical information, the semi-automatic plastic pipe bending machine can process pipe diameters from 16mm to 225mm.
A: According to the provided technical information, the automatic plastic pipe bender machine covers pipe diameter ranges from 1/2"–2" to 2 1/2"–8".
A: Yes. The bending angle is customized by mold, including common PVC elbow angles such as 11.25°, 22.5°, 45°, and 90°.
A: The provided product information lists PVC / Acrylic as the material for pneumatic logistics tubes.
A PVC pipe bending machine is used to produce controlled bends in PVC and plastic pipes. It works through heating, mold bending, cooling, and shape setting. The machine is suitable for producing PVC elbows, electric conduit pipe bends, PVC bell ends, PVC double-ended expanded joints, and pneumatic logistics tubes.
A Semi-automatic PVC Pipe Bending Machine is suitable for flexible production and different pipe sizes, while an Automatic PVC Pipe Bending Machine is better for repeated and more stable production. By choosing the right machine type, mold design, and process settings, manufacturers can improve bending consistency and support a wider range of plastic pipe products.
