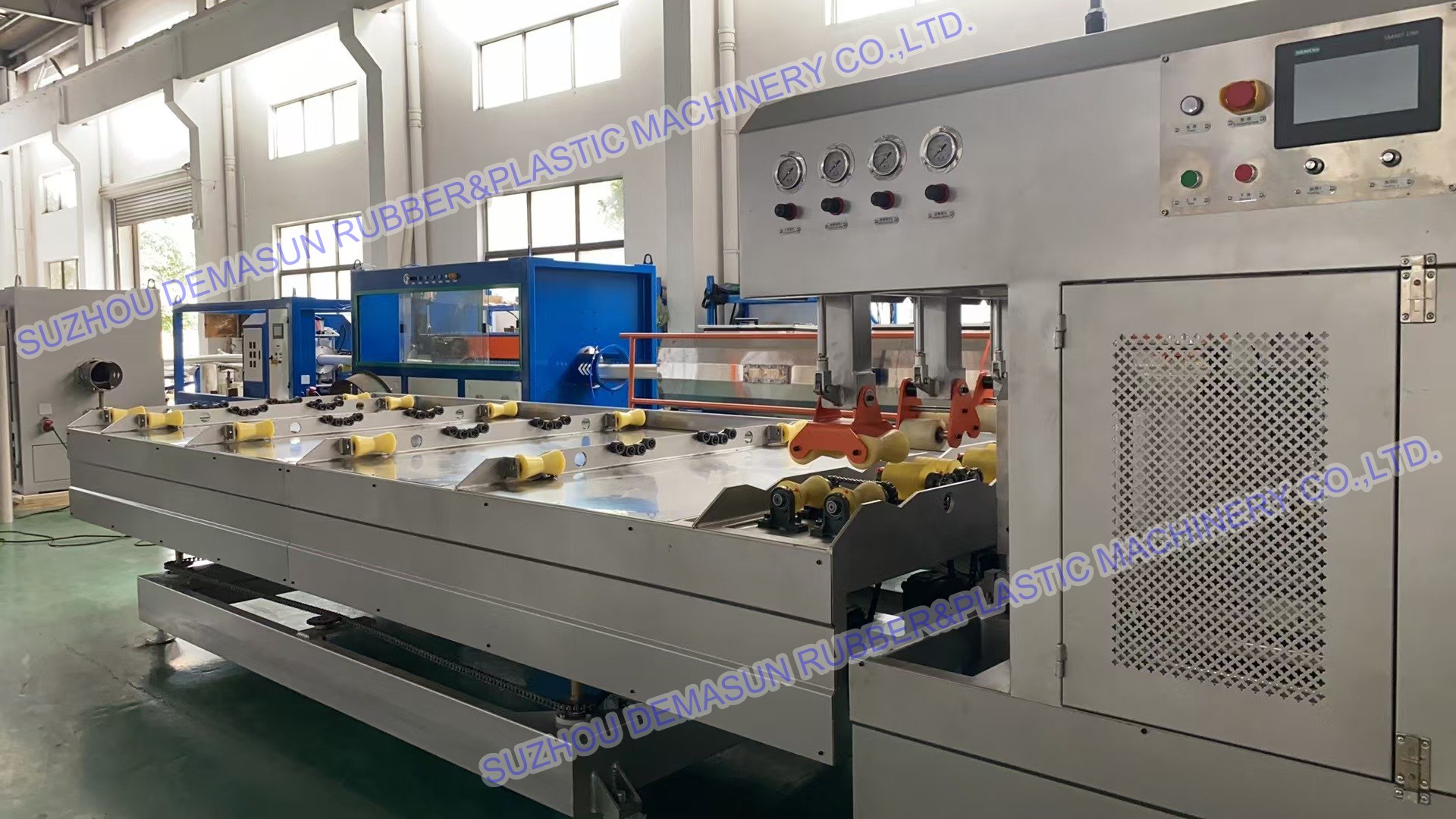

UPVC (Unplasticized Polyvinyl Chloride) pipes require specialized belling equipment that accounts for their unique material properties. Unlike flexible PVC variants, UPVC maintains rigid structural integrity, demanding precise temperature control and forming pressure during socket creation. A dedicated UPVC pipe belling machine delivers the accuracy these applications demand, producing sockets that meet stringent international standards for pressure and drainage systems.
UPVC pipes differ from standard PVC through their unplasticized composition, resulting in higher density and superior chemical resistance. These properties make UPVC ideal for municipal water supply, industrial chemical transport, and outdoor applications where UV stability matters.
The material's rigidity creates specific challenges during belling. UPVC requires more aggressive heating to achieve optimal forming temperature, but excessive heat causes material degradation. The UPVC socketing machine addresses these challenges through precision temperature control and optimized heating profiles.
Semi-automatic belling machines suit UPVC pipe manufacturers seeking quality socketing without full automation investment. The manual loading step proves particularly valuable for UPVC applications, as operators can visually inspect each pipe for surface defects, ovality, and dimensional accuracy before processing.
UPVC pipes exhibit minimal flexibility, making automated feeding more challenging than with standard PVC. Manual loading allows operators to properly align pipe ends with the forming die, ensuring concentric socket formation. This attention to positioning directly affects socket quality and connection reliability.
The semi-automatic configuration also accommodates the variety of UPVC pipe specifications common in the industry. Manufacturers producing multiple pressure ratings, wall thicknesses, and socket types benefit from the flexibility that manual loading provides.
Once loaded, the machine takes over with precise automated control. Infrared heating elements warm the UPVC pipe end uniformly, achieving the higher temperatures required for this material without surface burning. Temperature sensors provide real-time feedback, adjusting heating time based on pipe wall thickness and ambient conditions.
Forming dies expand the heated section into the specified socket profile. The machine controls forming pressure precisely, preventing material thinning that would compromise pressure performance. Immediate cooling locks the socket geometry, and the operator removes the finished product for inspection.
UPVC pipes typically employ specific socket configurations based on application requirements.
R-Type Sockets serve standard pressure applications in water distribution networks. The rounded profile provides reliable sealing with conventional gasket designs, and manufacturing costs remain economical for high-volume production.
U-Type Sockets address higher pressure ratings required in industrial settings. The enhanced socket geometry handles greater internal pressure and pressure surge events without deformation or leakage.
Square Sockets appear in drainage and infrastructure applications where external load resistance matters more than pressure performance. The squared profile distributes soil and traffic loads effectively, protecting pipe integrity in buried installations.
UPVC belling machines typically process diameters from 20mm to 315mm in standard configurations, with heavy-duty models extending to 630mm for large infrastructure projects. Cycle times range from 15-35 seconds depending on pipe size and wall thickness.
Production rates of 50-200 pipes per hour reflect the semi-automatic operation's balance between throughput and flexibility. For manufacturers requiring higher volumes, fully automatic configurations offer rates up to 600 pipes per hour.
UPVC pipe sockets must meet rigorous standards to ensure reliable field performance. Common certifications include:
ISO 4422 for water supply pipe systems
EN 1401 for drainage and sewerage applications
ASTM D1785 for Schedule pipe specifications
National standards for specific regional markets
The semi-automatic belling process supports quality assurance through operator inspection and precise process control. Demasun's equipment documentation includes quality protocols and testing procedures to help manufacturers achieve certification requirements.
UPVC's abrasive nature accelerates wear on forming dies and machine components. Regular inspection and timely replacement of wear parts maintains socket quality throughout production runs. Daily die cleaning prevents material buildup that affects dimensional accuracy.
Heating element condition critically affects UPVC processing. Worn elements produce uneven temperatures, leading to inconsistent socket formation. Monthly element inspection and annual replacement ensure consistent results.
A: Standard semi-automatic machines handle 20-315mm diameter UPVC pipes. Heavy-duty configurations process larger sizes up to 630mm for major infrastructure projects.
A: UPVC requires higher heating temperatures and longer heating times due to its unplasticized composition. The material also exhibits less flexibility, making manual loading more practical than automated feeding.
A: Interchangeable dies enable production of R-Type, U-Type, and Square sockets. Die changeover typically takes 20-30 minutes with proper training.
A: Common standards include ISO 4422, EN 1401, and ASTM D1785. Specific requirements vary by market and application—verify target market specifications before production.
A: Daily die cleaning and inspection, weekly lubrication, monthly heating element checks, and annual comprehensive service. UPVC's abrasive nature may require more frequent die replacement than standard PVC applications.
UPVC pipe belling demands specialized equipment that respects the material's unique properties. Semi-automatic belling machines offer the precision, flexibility, and inspection capability that UPVC manufacturing requires. Understanding your specific application requirements—pressure ratings, socket types, and production volumes—helps select the optimal equipment configuration for your operation.
