Machine Characteristics

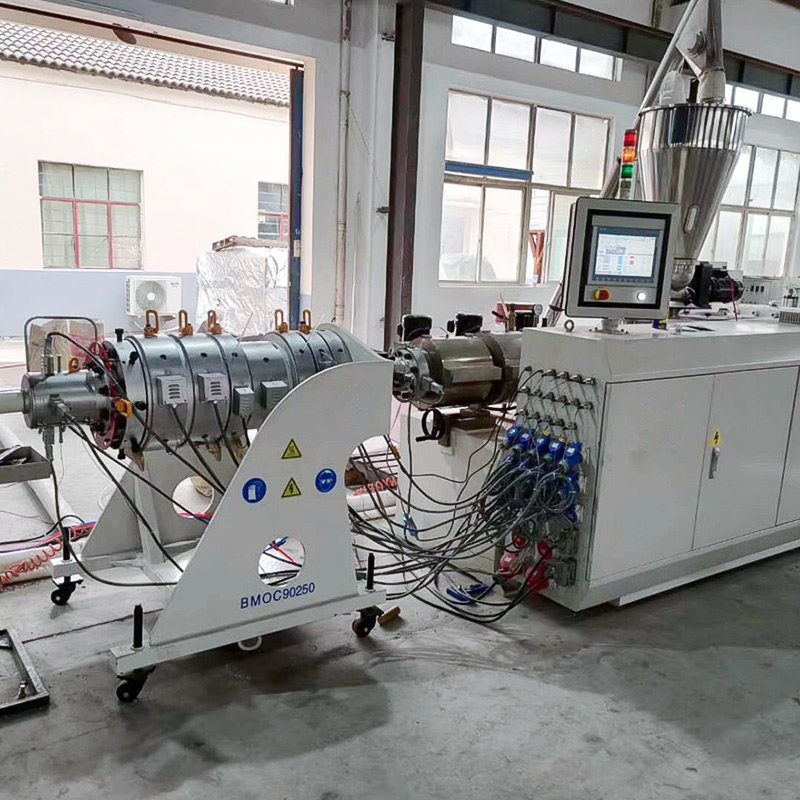

Adopt Parallel Double-Screw extruder to save energy and reach better Plasticization.
Reasonable flow runner design ensures large extrusion capacity and compression ratio of the mould.
Stronger material for Vacuum tank to make sure long service life.

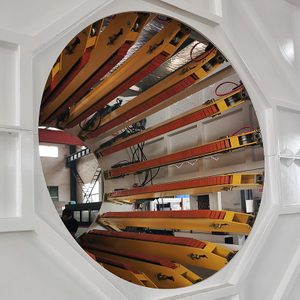

Each caterpillar is controlled of servo motor, which will make the stable speed, and it can meet the requirements of fast hauling of different pipe size.
The cutting is controlled independently and the saw cutting can help the production line to speed up and increase production.
Machine Advantages
Techninical information | Demasun CPVC pipe machine | Normal CPVC pipe machine |
Screw type | Parallel Double-screw | Conical double-screw |
Screw material | from Japan | From China |
Motor | Famous brand from Brazil | Beide or other brand made in China |
Example Extruder Maximum output | 220kg/h | 200kg/h |
Advantages & disadvantages | Unique mould design. Extruded pipe becomes more smooth and shining. | Normal mould design, may caused extrusion marks on pipe wall, Pipe is not so smooth and shining. |
Corrosion resistance mould material, with long service life. | normal mould material, with short service life. | |
better improvement on material plasticization. | Over plasticization and difficult to control the temperature. | |
saves 30% energy and electric power. | spend more energy and more electric power. |
Technical Parameter
CPVC pipe size | Extruder Model | Max. Production Output(kg/h) | Motor power(kw) |
1/2"~2"(Ø15.9- Ø60.3) | DMS78 | 220 | 37KW |
1½"~4"(Ø48.2- Ø114.3) | DMS78 | 270 | 45KW |
3"~6"(Ø88.9- Ø168.3) | DMS93 | 350 | 55KW |
4"~8"(Ø114.3- Ø219.1) | DMS93 | 430 | 75KW |
6"~10"(Ø168.3- Ø273.1) | DMS93 | 430 | 75KW |
8"~12"(Ø219.1- Ø323.9) | DMS114 | 520 | 90KW |
8"~16"(Ø219.1- Ø406) | DMS114 | 630 | 110KW |
Video

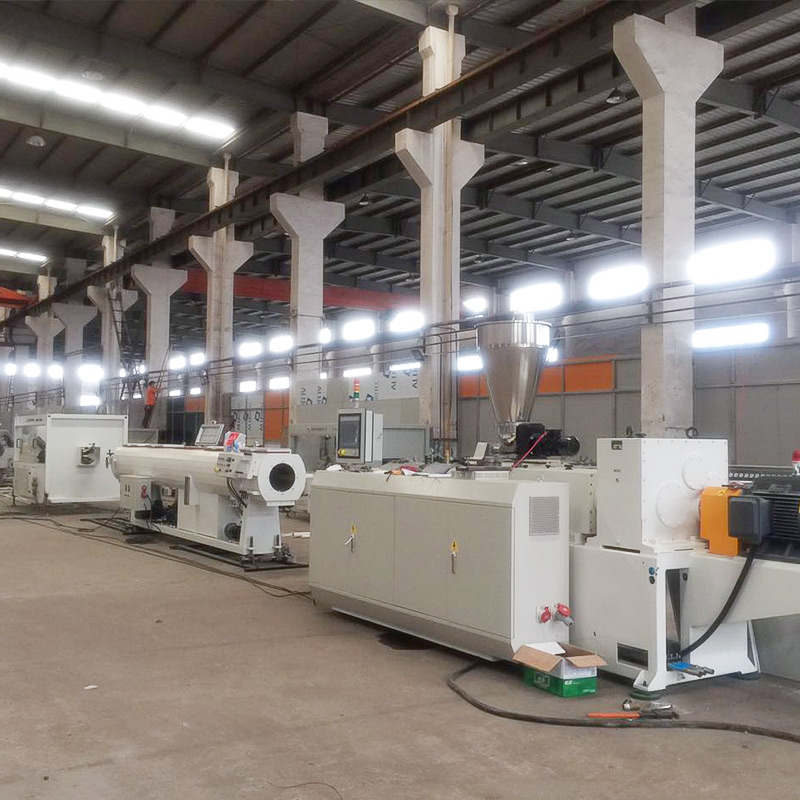

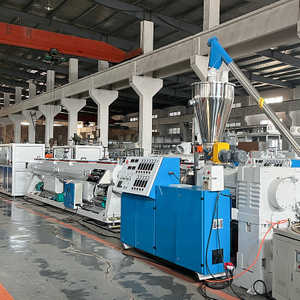

CPVC Pipe Production Line
