Views: 0 Author: Site Editor Publish Time: 2025-08-20 Origin: Site
Delivering high-performance, sustainable piping systems is a growing priority in modern infrastructure development. For industries seeking solutions that combine strength, efficiency, and environmental responsibility, the OPVC Pipe Production Line has emerged as a highly effective choice. This article explores why the OPVC Pipe Production Line stands out in manufacturing PVC-O pipes, which are rapidly replacing traditional materials in water, gas, and mining applications. We’ll break down the advantages of PVC-O pipes, examine the core components of the production line, and show how this technology brings both economic and environmental benefits to manufacturers.
PVC-O (oriented polyvinyl chloride) pipes derive their superior mechanical properties from a specialized molecular orientation process. By stretching the material under controlled conditions, the alignment of PVC molecules is restructured, significantly enhancing tensile strength and impact resistance. Compared to standard u-PVC pipes, PVC-O pipes can be up to four times more impact-resistant. This makes them ideal for high-pressure water supply networks and applications where durability is essential.
Additionally, the flexibility of PVC-O makes it much more resilient to ground movement, temperature variation, and water hammer effects. This property reduces the likelihood of cracks or leaks over time, further enhancing the long-term reliability of the system. In regions with unstable soil or high seismic activity, this improved adaptability becomes a crucial advantage.
Thanks to this molecular orientation, PVC-O pipes also feature thinner walls without sacrificing strength. This structural efficiency means manufacturers can use less raw material—often reducing material usage by around 50% compared to u-PVC pipes. The lighter weight not only benefits production and logistics but also simplifies installation, especially in hard-to-reach or remote areas.
Furthermore, thinner walls contribute to higher internal diameters for the same external pipe dimensions. This improves the flow rate capacity and supports more efficient fluid transfer systems. In irrigation, firefighting, and municipal distribution networks, this feature supports better pressure distribution and more uniform service delivery.
PVC-O pipes offer improved internal flow characteristics due to their smoother inner surfaces and consistent diameter. These enhancements translate into lower friction losses during fluid transport, resulting in reduced energy consumption for pumping. For utilities and municipalities managing large-scale water systems, this can lead to significant operational savings over time.
In large systems, even a small reduction in friction loss can save thousands of dollars in electricity costs annually. The lower pumping requirements also translate into fewer mechanical breakdowns in pumps, extending the life of related equipment and reducing maintenance budgets.

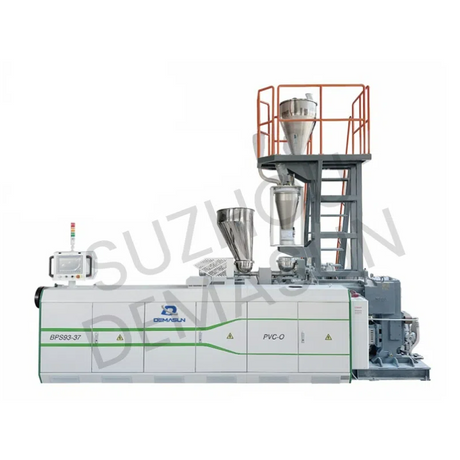

A high-quality OPVC Pipe Production Line starts with an efficient extrusion system. Twin-screw extruders, commonly used in top-tier equipment, provide stable material melting and homogenization. Precise temperature control is essential here—overheating can degrade PVC quality, while low temperatures may hinder molecular orientation. DEMASUN’s production lines incorporate smart temperature systems to ensure optimal processing at every stage.
Temperature stability also contributes to color consistency and mechanical strength of the final pipe. Inconsistent temperature leads to uneven wall thickness or visual defects, which can negatively affect both aesthetics and structural integrity.

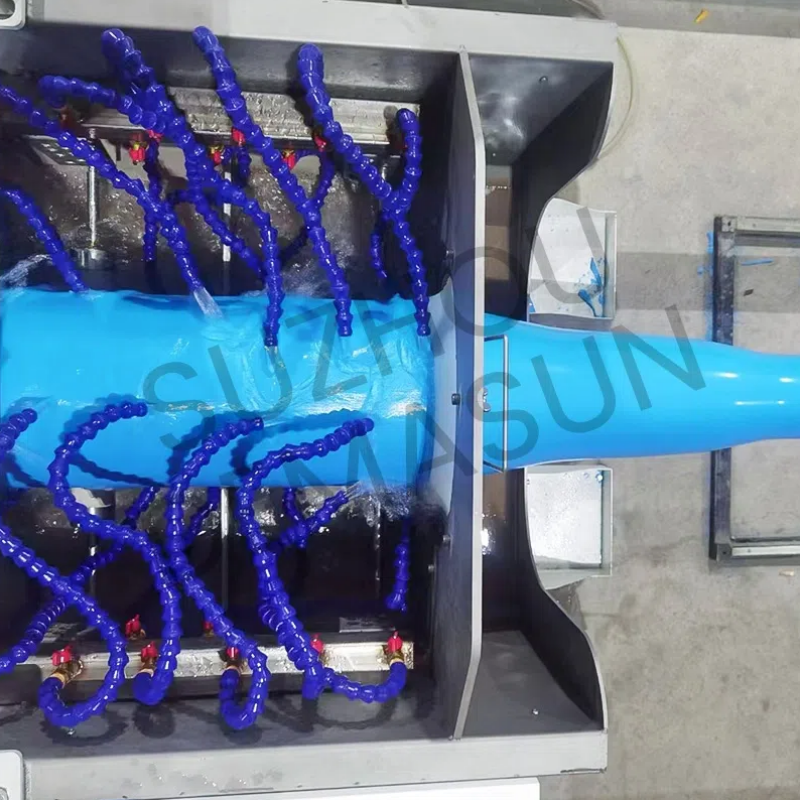

The heart of PVC-O production lies in the orientation and expansion phase. After initial extrusion, pipes are subjected to controlled stretching in both axial and hoop directions to induce molecular orientation. This requires vacuum calibration tanks for size consistency, and servo-driven haul-off units that maintain steady tension during expansion. DEMASUN integrates these features to ensure dimensional accuracy and mechanical uniformity across every meter of pipe produced.
The precision of these systems allows manufacturers to target specific pressure ratings or standards, such as PN12.5, PN16, PN20 or PN25. In international markets where regulations vary, the ability to manufacture within tight tolerances becomes essential to achieving compliance and ensuring customer trust.

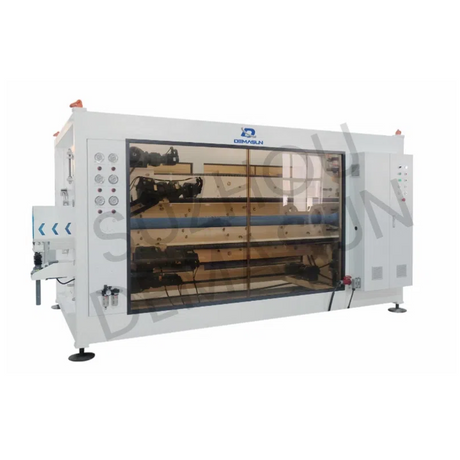

To streamline production and improve efficiency, modern lines include inline socketing and cutting systems. These automate two critical finishing steps—creating joints and cutting pipes to required lengths—without the need for additional labor or secondary machines. With inline processing, manufacturers can significantly boost throughput while ensuring consistent product quality, reducing time and costs simultaneously.
Moreover, automatic socketing ensures leak-proof connections. This reduces the risk of installation errors and enhances the system’s long-term integrity. For high-volume production environments, inline finishing can increase operational efficiency by over 30%.
One of the most compelling advantages of the OPVC Pipe Production Line is its resource efficiency. Using up to 50% less raw material per unit length of pipe not only cuts costs but also reduces carbon emissions associated with PVC production. For companies aiming to align with global sustainability targets, switching to PVC-O via efficient production lines represents a practical and impactful step.
Additionally, the production process is inherently cleaner. There is minimal waste generation, and most off-cuts or rejected sections can be recycled back into the line, contributing to a closed-loop manufacturing cycle.
With the global construction industry increasingly adopting green building certifications, using pipes manufactured with environmentally conscious technology can be a competitive advantage. It demonstrates corporate responsibility and enhances brand reputation among both public and private sector clients.
Because PVC-O pipes are significantly lighter than alternatives like steel, cast iron, or even conventional u-PVC, transportation costs are lower. More pipes can be transported per truckload, reducing the number of trips needed. Installation is easier and faster too—lighter pipes require less heavy equipment, and their increased flexibility minimizes the risk of breakage during handling. These benefits are particularly crucial for infrastructure projects in rural or underdeveloped areas where logistics pose a challenge.
For example, in remote water supply projects where heavy lifting machinery is unavailable, the light weight of PVC-O pipes makes manual handling possible, thus reducing total installation time by up to 40%.
At first glance, an OPVC Pipe Production Line may seem more expensive than traditional extrusion equipment. However, the long-term return on investment tells a different story. Reduced raw material usage, higher output efficiency, fewer production defects, and lower energy consumption all contribute to superior value over time. For manufacturers focused on scaling operations or entering high-demand markets, the higher initial cost is often recovered within a short production cycle.
Additionally, maintenance needs are typically lower for well-designed OPVC lines. With fewer breakdowns and longer operational lifespans, companies benefit from reduced downtime and higher output consistency.
Not all production lines are created equal. When selecting an OPVC extrusion system, it's essential to consider the required pipe diameter ranges, pressure classes, and production output targets. DEMASUN’s lines, for example, are highly customizable, offering support for various pipe sizes and pressure ratings suitable for municipal water, industrial fluid transport, and gas networks. Buyers should also ensure that the line can adapt to different market demands, with modular components that allow future upgrades.
It's also important to consider after-sales support and technical service. A reliable partner like DEMASUN ensures smooth setup, training, and troubleshooting, which can significantly reduce the learning curve for new operators and ensure optimal performance from day one.
For manufacturers looking to produce stronger, lighter, and more sustainable piping products, the OPVC Pipe Production Line provides a cutting-edge solution. It combines advanced extrusion technology with energy-efficient processes to create PVC-O pipes that outperform traditional materials in nearly every metric. With reduced raw material consumption, lower operational costs, and enhanced product performance, it’s an ideal investment for the future of infrastructure development. DEMASUN proudly offers tailored OPVC solutions that help our clients meet these goals with confidence.
Contact us today to learn more about our OPVC Pipe Production Line, request specifications, or get a customized quotation tailored to your project needs.
