Understanding Plastic Extruders: An Introduction To The Manufacturing Process

Views: 0     Author: Site Editor     Publish Time: 2025-06-24      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Plastic extrusion is a highly versatile and efficient manufacturing process used to produce a wide range of plastic products, from simple pipes and sheets to complex profiles and films. At the heart of this process is the plastic extruder, a powerful piece of equipment that melts and shapes plastic material into the desired form. Whether you're involved in the production of packaging materials, automotive parts, or household goods, plastic extruders play a crucial role in modern manufacturing. In this article, we will explore the basics of plastic extruders, how they work, and their various applications across industries.


What is a Plastic Extruder?

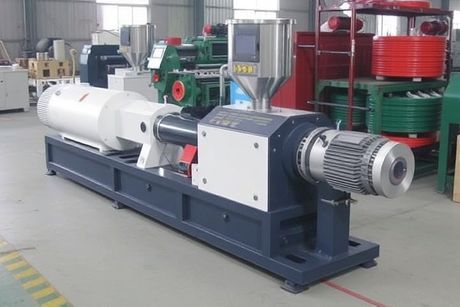

A plastic extruder is a machine used in the manufacturing process of plastic materials,where raw are fed into the machine, heated to a molten state, and forced through a die to create continuous shapes such as pipes, sheets, films, and profiles. The extruder consists of several key components, including a hopper, screw, barrel, die, and cooling system. The raw plastic material is fed into the hopper, which then moves it into the barrel where it is heated and melted by a rotating screw. Once the plastic is melted, it is pushed through a die that shapes it into the final product.


The Basic Process of Plastic Extrusion

The process of plastic extrusion can be broken down into a few distinct steps. Let’s take a closer look at each stage:

1. Feeding the Raw Material

The process begins with feeding plastic powder,pellets or granules into the extruder through the hopper. These pellets are made from a variety of plastic resins such as polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), polystyrene (PS), and more. The hopper ensures that a steady supply of material is provided to the extruder.

2. Melting and Homogenizing the Plastic

The raw plastic material is then transported into the barrel, where the process of melting begins. Inside the barrel, there is a rotating screw, which moves the plastic material along the barrel while also applying heat. The screw is typically designed with different zones to control the heating process effectively.

The temperature in the barrel is closely controlled to prevent overheating, which could degrade the plastic, or underheating, which could prevent proper melting. The extrusion process relies on careful management of temperature and pressure to ensure the material flows smoothly and evenly.

3. Shaping the Material

Once the plastic is fully melted and homogenized, it is forced through a die, which determines the shape of the final product. Dies come in various designs, depending on the product being produced. For example, a round die might be used for producing pipes, while a flat die could be used to make sheets or films.

The die's role is critical because it determines the cross-sectional shape of the extruded plastic. The die design must be precise to ensure the desired consistency and dimensions of the final product. Additionally, the die can be customized to produce a variety of shapes, such as tubes, sheets, profiles, or even complex geometries for specialized applications.

4. Cooling and Solidification

After the plastic has passed through the die, it is still in a soft, molten state and needs to be cooled down to solidify into its final form. This is where the cooling system comes into play. In most cases, water or air is used to cool the extruded plastic. Water cooling is often used for products like pipes and profiles, while air cooling is typically used for films and sheets.

The cooling rate is essential, as it directly affects the physical properties of the finished product. Too rapid a cooling rate could cause the material to contract unevenly, while a slow cooling rate could lead to warping or distortion. Therefore, controlling the cooling process is a critical factor in ensuring the product's quality.

5. Cutting and Finishing

Once the plastic product has cooled and solidified, it needs to be cut to the required length. The cutting mechanism in a plastic extruder can be either a guillotine cutter or a saw, depending on the type of material and the product. For long products like pipes or profiles, the cutting mechanism is usually synchronized with the extrusion speed to ensure uniform length.

In some cases, the extruded plastic may undergo additional finishing processes such as surface treatment, coating, or additional shaping to meet specific product requirements.


Types of Plastic Extruders

There are two primary types of plastic extruders used in the industry: single-screw extruders and twin-screw extruders. Each type has its advantages and is suitable for different applications.

Single-Screw Extruders

Single-screw extruders are the most commonly used type in the industry. They are relatively simple in design, with a single rotating screw inside a barrel. This type of extruder is best suited for processing materials that flow well and do not require extensive mixing or high processing temperatures.

Single-screw extruders are generally more cost-effective, easier to maintain, and can handle a wide range of materials, including thermoplastics like PVC, PE, and PS. They are often used in the production of pipes, sheets, and films.

Twin-Screw Extruders

Twin-screw extruders feature two intermeshing screws that rotate in the same direction. The presence of two screws allows for more thorough mixing of the material, making twin-screw extruders ideal for processing complex materials, including those with additives like fillers, colorants, or reinforcements.

Twin-screw extruders are more expensive and require more maintenance than single-screw extruders, but they offer superior mixing capabilities, higher processing speeds, and greater control over material quality. They are commonly used in the production of compound materials, medical devices, and other specialized plastic products.


Applications of Plastic Extruders

Plastic extruders have a broad range of applications across various industries. Below are some of the most common uses:

1. Pipe Manufacturing

Plastic extrusion is widely used in the production of pipes for plumbing, drainage, irrigation, and telecommunications. PVC and HDPE pipes are commonly manufactured using extrusion lines, with different dies used to produce pipes of varying diameters and wall thicknesses.

2. Sheet and Film Production

Extrusion lines are also used to create plastic sheets and films for applications such as packaging, construction, and agriculture. This includes the production of flexible films, rigid sheets, and thermoformed materials.

3. Profiles and Trim Components

Plastic extrusion is a critical process in producing custom profiles and trim components used in industries such as automotive, construction, and furniture manufacturing. Extrusion allows manufacturers to create profiles with complex shapes, providing flexibility and precision for a wide range of applications.

4. Medical and Food Packaging

In the medical and food industries, plastic extruders are used to produce specialized packaging materials such as trays, blister packs, and medical tubing. The precision and customization offered by extrusion are crucial in meeting the stringent quality and regulatory standards required in these sectors.

5. Wire and Cable Coating

Extrusion is also used in coating wires and cables with materials such as PVC or rubber, providing insulation and protection for electrical and telecommunications wires.


Conclusion

Plastic extrusion is a critical process in the manufacturing of plastic products, and plastic extruders play a central role in ensuring high-quality, efficient production. Whether for producing pipes, films, profiles, or specialized components, the plastic extrusion process offers numerous benefits, including cost-effectiveness, versatility, and the ability to handle a wide range of materials. Understanding how plastic extruders work and their key applications can help businesses make informed decisions about their manufacturing processes and ultimately enhance product quality and production efficiency.

As the demand for plastic products continues to grow across various industries, the role of plastic extrusion will remain pivotal in meeting market needs, and advancements in extruder technology will continue to improve production capabilities.
