Characteristics of this equipment
1. High level of automatic control, Lower labor intensity of workers, save labor cost.
2. Provide turnkey project based on integrated manufacturing capability of the entire system of equipment. Product quality is guaranteed, and the after-sale service is faster and better.
3. Centralized drainage and exhaust of the entire production line to meet environmental protection requirements.
4. High finished product ratio, optimized crushing scheme, reasonable friction washing scheme, reducing material loss and waste.
5. Low energy consumption, reasonable utilization of internal water circulation system and heat exchanger, water-saving and heat saving.
6. The equipment is durable and has a long service life. The electrical components are made of international first-class brands, equipped with well-known brand bearings, and the parts in contact with water and materials are made of stainless-steel material.
7. Provide personalized design solutions based on materials and customer requirements.
Quality Reference Table of 3A Class PET Flake
Moisture Content | <0.9% | Label | <20ppm |
PVC | <50ppm | Variegated tablets | <30ppm |
Glue | <10ppm | PH | Neutral |
PP/PE | <20ppm | Total impurity | <100ppm |
Metal | <20ppm | Flake size | 12mm,14mm or at request |
Technical Parameter
Capacity(Kg/h) | Power Installed (kw) | Required Area (m2) | Manpower | Steam Volume (Kg/h) | Compressed Air (m3/min) | Water supply (m3/h) |
500 | 220 | 400 | 8 | 350 | 4 | 1 |
1000 | 500 | 750 | 10 | 500 | 10 | 3 |
2000 | 700 | 1000 | 12 | 800 | 15 | 5 |
3000 | 900 | 1500 | 12 | 1000 | 15 | 6 |
4500 | 1000 | 2200 | 16 | 1300 | 18 | 8 |
6000 | 1200 | 2500 | 16 | 1800 | 18 | 10 |

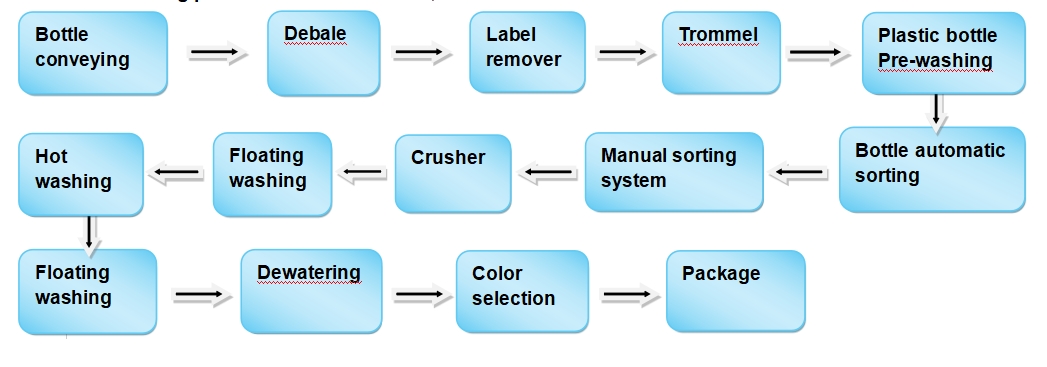

Main working process showed as follow
video

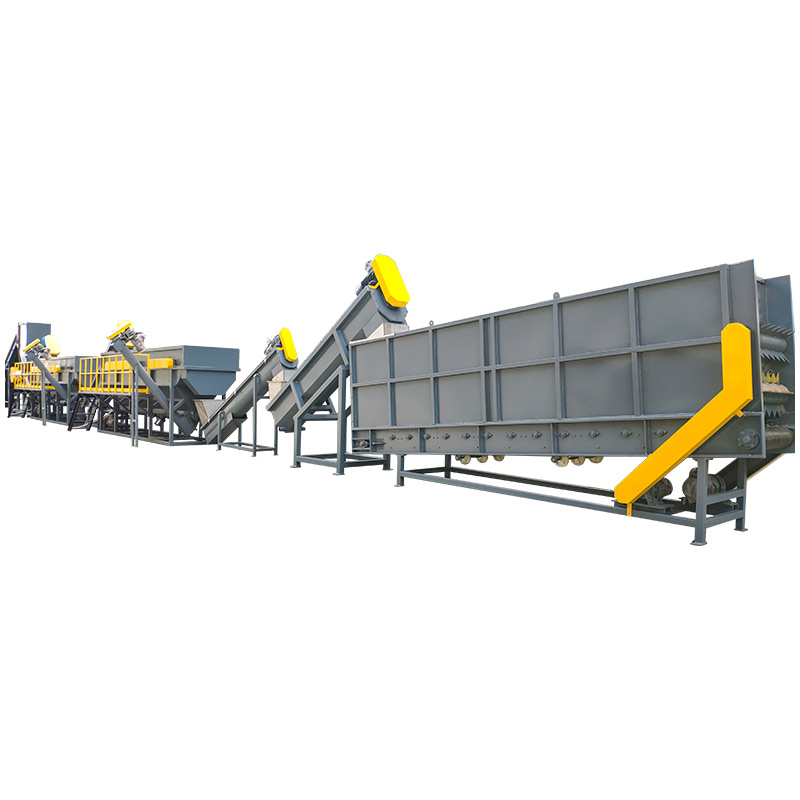

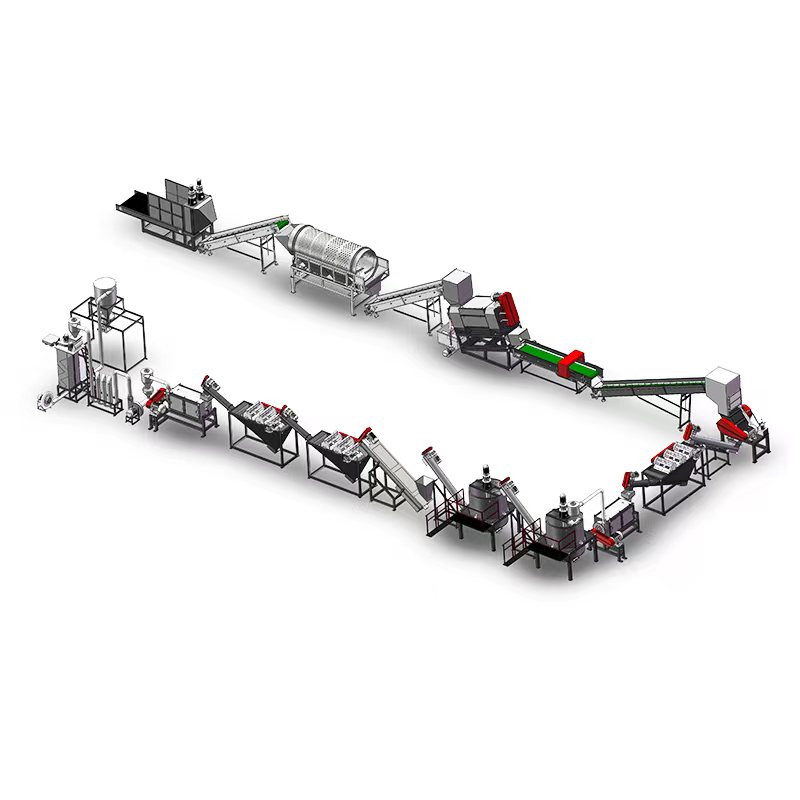

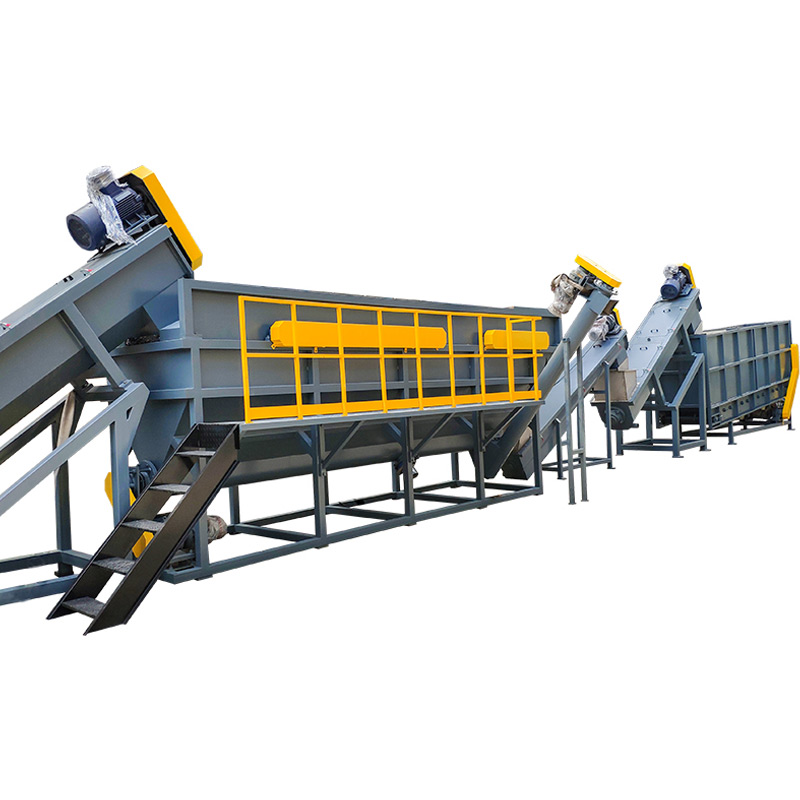

Plastic bottle recycling equipment PET bottle recycling machine
Characteristics of this equipment
1. High level of automatic control, Lower labor intensity of workers, save labor cost.
2. Provide turnkey project based on integrated manufacturing capability of the entire system of equipment. Product quality is guaranteed, and the after-sale service is faster and better.
3. Centralized drainage and exhaust of the entire production line to meet environmental protection requirements.
4. High finished product ratio, optimized crushing scheme, reasonable friction washing scheme, reducing material loss and waste.
5. Low energy consumption, reasonable utilization of internal water circulation system and heat exchanger, water-saving and heat saving.
6. The equipment is durable and has a long service life. The electrical components are made of international first-class brands, equipped with well-known brand bearings, and the parts in contact with water and materials are made of stainless-steel material.
7. Provide personalized design solutions based on materials and customer requirements.
Quality Reference Table of 3A Class PET Flake
Moisture Content | <0.9% | Label | <20ppm |
PVC | <50ppm | Variegated tablets | <30ppm |
Glue | <10ppm | PH | Neutral |
PP/PE | <20ppm | Total impurity | <100ppm |
Metal | <20ppm | Flake size | 12mm,14mm or at request |
Technical Parameter
Capacity(Kg/h) | Power Installed (kw) | Required Area (m2) | Manpower | Steam Volume (Kg/h) | Compressed Air (m3/min) | Water supply (m3/h) |
500 | 220 | 400 | 8 | 350 | 4 | 1 |
1000 | 500 | 750 | 10 | 500 | 10 | 3 |
2000 | 700 | 1000 | 12 | 800 | 15 | 5 |
3000 | 900 | 1500 | 12 | 1000 | 15 | 6 |
4500 | 1000 | 2200 | 16 | 1300 | 18 | 8 |
6000 | 1200 | 2500 | 16 | 1800 | 18 | 10 |
Main working process showed as follow
video
Plastic bottle recycling equipment PET bottle recycling machine
