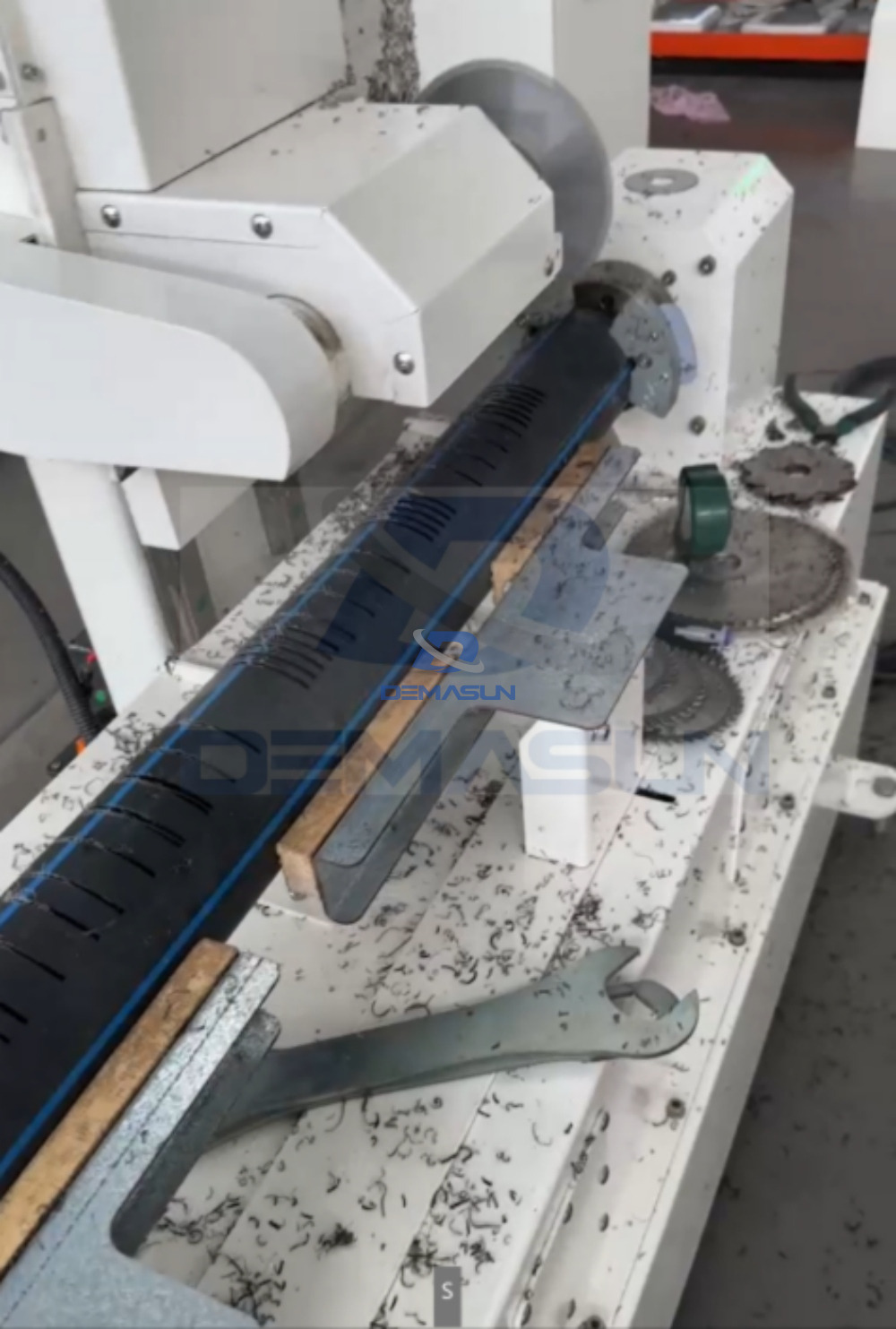

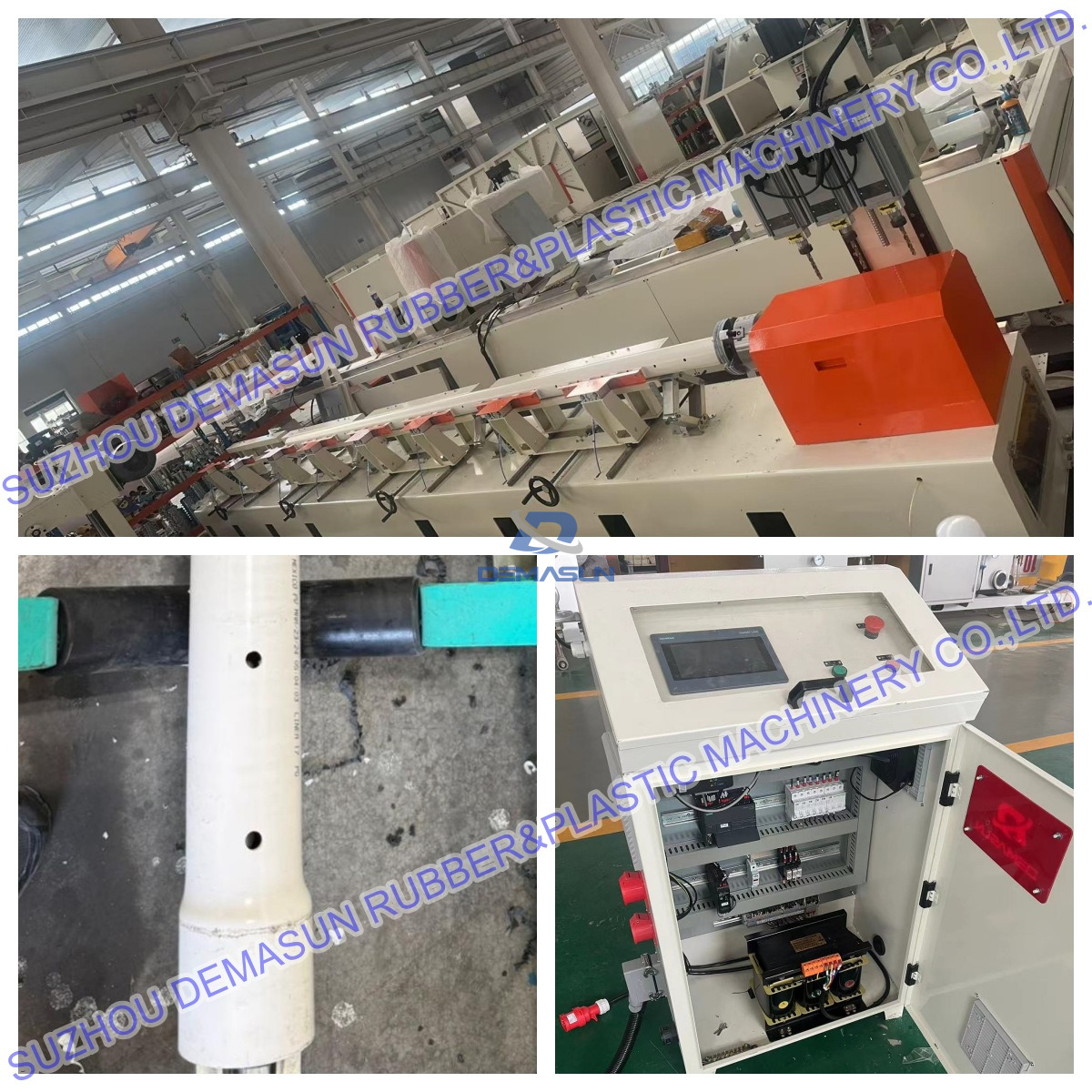

Automatic Plastic Pipe Perforator, PVC PE Pipe Drilling machine
Pipe Usage: This machine is mainly used for circular punching of PVC/PE pipe and other plastic structural wall pipes and solid wall pipes.

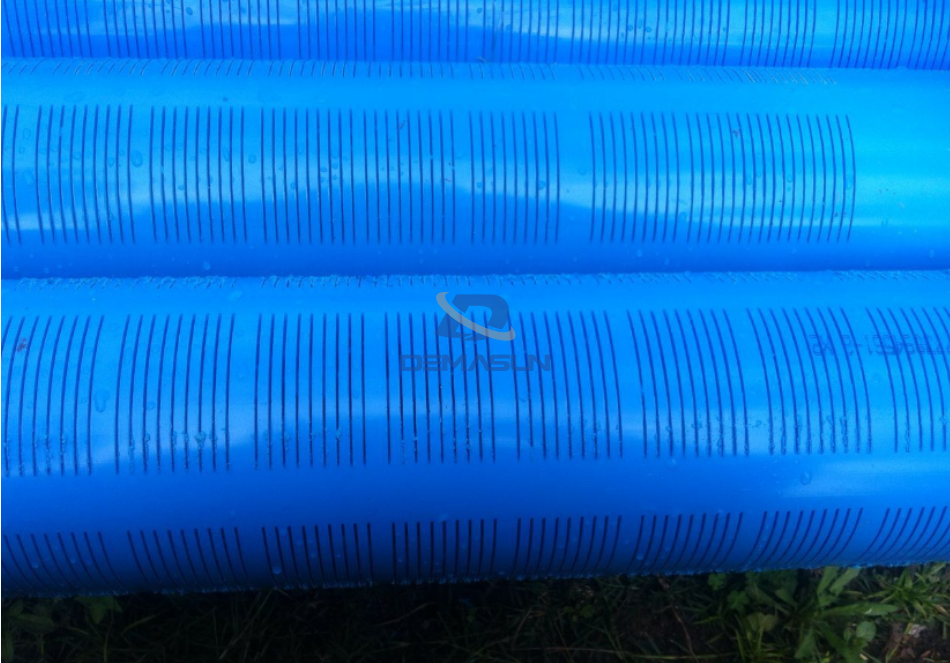

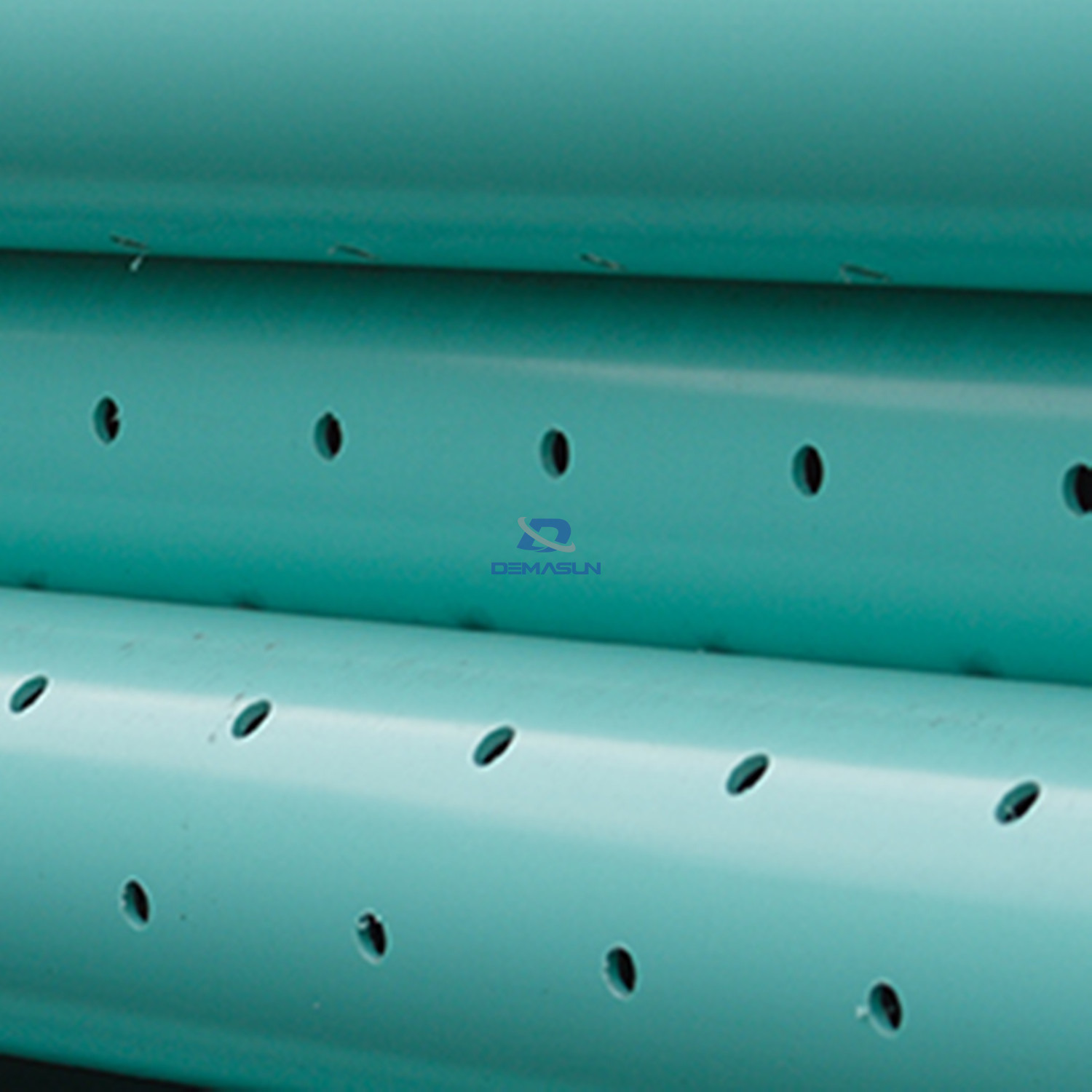

The punched/drilled pipes are suitable for drainage, seepage, underground water treatment, sewage treatment, farmland irrigation and other places such as sports fields, golf courses, parks, lawns, etc. Especially in the construction of "sponge cities", it has been widely used to solve urban waterlogging, rainwater collection and utilization, and black and odorous water treatment.
This machine adopts an imported PLC programmable control system, with a high degree of automation, simple and convenient operation, and safety and reliability,high efficiency.
A. Technical parameter
| 1 | Plastic pipe material and type | For PVC, PE pipe |
| 2 | Pipe Diameter | Ø110mm-Ø400mm(or at request) |
| 3 | Center Height | 500-600mm |
| 4 | Working Voltage | 380V,50Hz,3-phase |
| 5 | Pipe Length | 3000mm~6000mm (need choose one pipe length) |
| 6 | Compressed air pressure | 0.6Mpa |
| 7 | Total Power | 7.1KW |
| 8 | Main motor power | 4.5KW |
| 9 | Up and down motor power | 1.1KW |
| 10 | Overall size | About 7200mm*800mm*1800mm |
| 11 | Machine color | Our standard color(or at customer's request) |
| 12 | Machine weight | About 1500KG |
| 13 | Slot type | Horizontal type |
| 14 | Drill bit material | DEMASUN STANDARD 1set |
The Machine can be designed according to different Pipe specification and Pipe length, mostly pipe length is about 3meter to 6meter. The widely usage is working on PE or PVC pipes.
B. Main electric components
| 1 | PLC | MITSUBISHI or SIEMENS |
| 2 | Touch Panel | SIEMENS OR FLEXEM FROM CHINA |
| 3 | Low-voltage Electric system | SCHNEIDER OR EATON |
| 4 | Contactor | Siemens |
| 5 | Circuit breaker | Siemens |
| 6 | SERVO MOTOR | INOVANCE OR EQUIVALANET BRAND |
